26-Position Shrouded Header for IDC Ribbon Cable

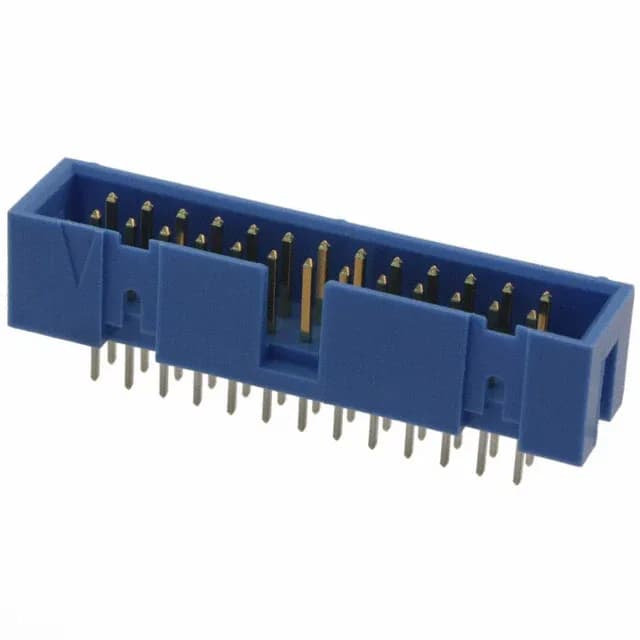

The 2-1761679-9 is a 26-position, 2-row, vertical through-hole header from the AMP-Latch series, designed to mate with industry-standard 0.100-inch pitch IDC ribbon cable sockets.
2-1761679-9 TE AMP-Latch Header 26 Pos 2.54mm
MPN2-1761679-9
Active
TE Connectivity AMP-Latch, Header, 26 Positions, 0.100" (2.54mm) Pitch, Through Hole, Shrouded - 4 Wall, Gold Mating Finish, Active
$6.0600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.350\" (8.89mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.165\" (4.19mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for 2-1761679-9?
This header mates with a standard 0.100-inch pitch, 26-position IDC ribbon cable socket, such as the AMP-Latch series socket. The 4-wall shrouding and keying slot ensure correct orientation.
Is 2-1761679-9 RoHS compliant?
Yes, it is RoHS3 compliant.
