TE Connectivity AMP Connectors 2-1761711-3 — Pin Headers

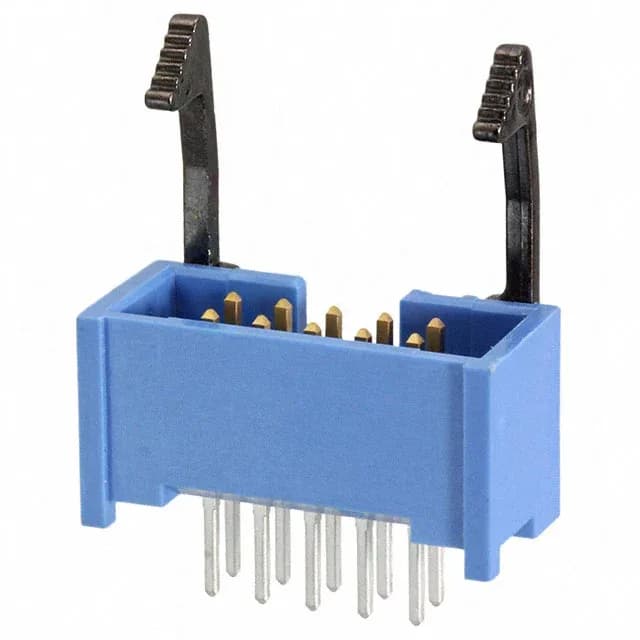

2-1761711-3 TE AMP-Latch Header 10 Pos 2.54mm Pitch

MPN2-1761711-3
Active

TE Connectivity AMP-Latch, 2-1761711-3, Board to Cable/Wire, Header, 10 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Latch Lock/Eject Hooks, Long, 30.0µin (0.76µm) Gold or Gold-Palladium Mating, Tin Post, Blue Insulation, UL94 V-0, Tray

$3.4400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-1761711-3 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.404\" (10.26mm)
Insulation materialPolybutylene Terephthalate (PBT)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray

All specifications

2-1761711-3 additional specifications
ParameterValue
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.162\" (4.11mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.237\" (6.02mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

10-Position, 0.100" Pitch Header for Board-to-Cable Wiring

The 2-1761711-3: The shrouded 4-wall housing with a keying slot protects the pins during mating and prevents misalignment, while the latch lock/eject hooks hold the mating receptacle under cable strain — no chance of the connector backing out in a vibrating panel.

Mating Half and Termination Details

This header mates with AMP-Latch receptacles (socket housings) that accept 0.100" pitch ribbon cable or discrete crimp terminals. The latch lock/eject hooks engage the receptacle's locking ears for a positive, vibration-resistant connection. Termination is through-hole solder — the 0.162" (4.11mm) post length fits standard PCB thicknesses. The square male pins (0.025" square typical for this series) provide a gas-tight solder joint.

Active Production and Sourcing

Pricing and stock are confirmed at quote time against your BOM quantity.

Frequently asked questions

Is 2-1761711-3 RoHS compliant?

Yes, it is ROHS3 compliant.
