TE Connectivity AMP Connectors 2-178128-3 — Connector Housings

TE Dynamic D-3200 2-178128-3

MPN2-178128-3
Active

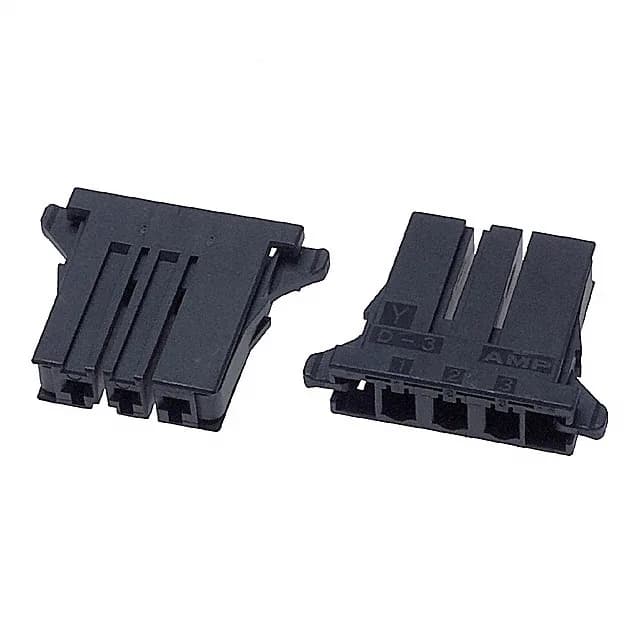

TE Connectivity Dynamic D-3200 series, Receptacle Housing, 3 Position, 5.08mm Pitch, 1 Row, Free Hanging (In-Line), Crimp Termination, Black, Polarizing Key.

$1.1900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-178128-3 specifications
ParameterValue
SeriesDynamic D-3200
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.200\" (5.08mm)
PackageBulk
FeaturesPolarizing Key
Rows1
Contact terminationCrimp
Positions3

Product details

The TE Connectivity 2-178128-3 is a 3-position receptacle housing from the Dynamic D-3200 series, built for wire-to-board or inline crimp connections on a 5.08mm pitch. The polarizing key on the housing prevents a mis-oriented plug from seating — a practical safeguard when the harness gets serviced in the field.

The listing note on this housing is clear: contacts are not included. The housing uses a crimp termination method, so the wire-to-terminal connection is made with a standard crimp tool, then the terminal locks into the housing. If you're filling a BOM line for this housing, add a line item for the terminals or the harness builder will have an empty shell and no way to populate it.

Mating Half — What Plugs Into This Receptacle

The polarizing key on the housing aligns with the corresponding slot on the plug header, so the two halves only go together one way. If you're building a cable-to-board interconnect, the plug header is the board-mount side; this housing is the wire harness side.

Frequently asked questions

Does 2-178128-3 include contacts?

No — the listing explicitly notes that contacts are not included. The housing ships empty. You need to order the matching Dynamic D-3200 crimp socket terminals separately and terminate them onto your wire before inserting into the housing cavities.

What is the mating connector for 2-178128-3?

The mating half is a Dynamic D-3200 series plug header with 3 positions on a 5.08mm pitch, single row. The polarizing key on this receptacle aligns with the corresponding slot on the plug header to prevent mis-mating.

Is 2-178128-3 RoHS compliant?

Yes, the 2-178128-3 is listed as RoHS compliant.
