TE Connectivity AMP Connectors 2-178128-4 — Connector Housings

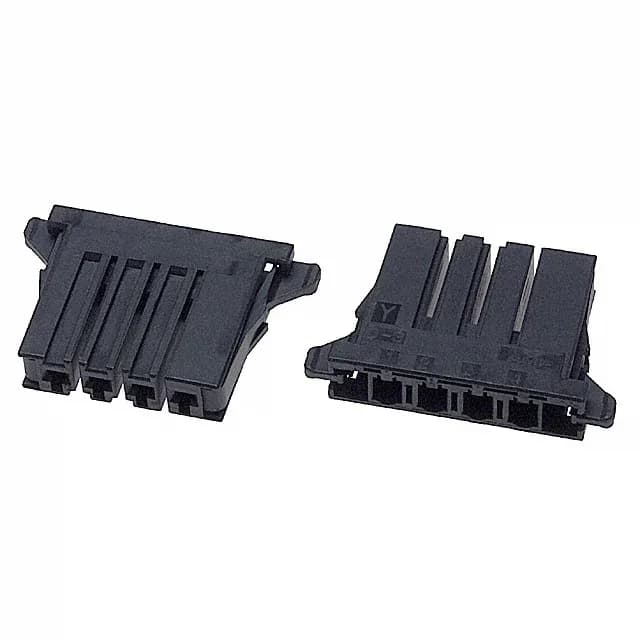

TE Dynamic D-3200 2-178128-4 Receptacle Housing, 4 Pos

MPN2-178128-4
Active

TE Connectivity Dynamic D-3200 receptacle housing, 4 positions, 0.200" (5.08mm) pitch, single row, black, polarizing key, crimp termination, free hanging, -55°C to 105°C, RoHS.

$1.3400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-178128-4 specifications
ParameterValue
SeriesDynamic D-3200
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.200\" (5.08mm)
PackageBulk
FeaturesPolarizing Key
Rows1
Contact terminationCrimp
Positions4

Product details

The 2-178128-4: It uses a 0.200" (5.08mm) pitch, giving each circuit enough spacing for moderate power or signal in a wire-to-board harness. A polarizing key on the housing prevents mismating with the header — useful when multiple Dynamic connectors sit side-by-side in the same assembly. This is a crimp-termination, free-hanging (in-line) receptacle. The Dynamic D-3200 series is a modular power and signal interconnect family; this single-row 4-position variant is a compact choice for a low-circuit-count harness branch.

The 2-178128-4 requires separately ordered female socket contacts. TE's Dynamic D-3200 series uses a specific crimp terminal — look for the mating socket contact in the same series (typically the 1-178128-* or 178128-* family). The housing is keyed and single-row, so the terminal insertion orientation matters: the contact must seat fully until the retention lance locks into the housing cavity. A terminal position assurance (TPA) retainer is not standard on this single-row housing, so verify full insertion by feel and a gentle pull-back on the wire.

Frequently asked questions

Does 2-178128-4 have a polarizing key?

Yes, the housing includes a polarizing key. This prevents inserting the receptacle onto the header in the wrong orientation, which is useful when multiple Dynamic connectors are used in the same harness assembly.
