TE Connectivity AMP Connectors 2-178128-5 — Connector Housings

TE Dynamic D-3200 2-178128-5

MPN2-178128-5
Active

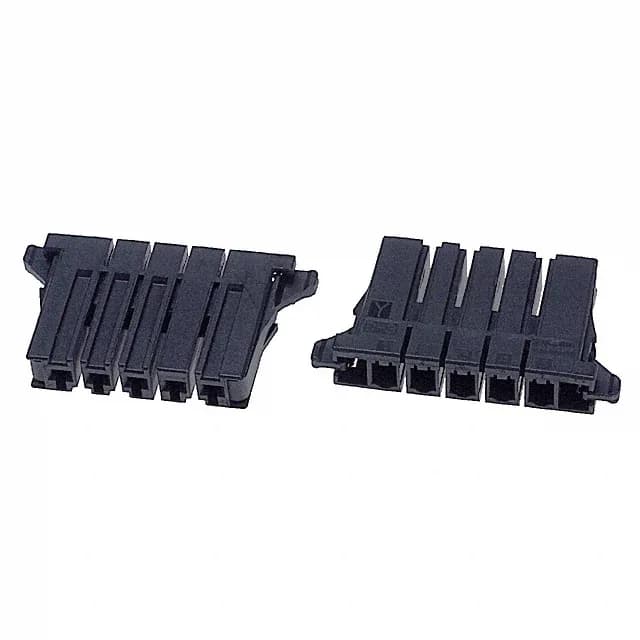

TE Connectivity Dynamic D-3200 receptacle housing, 2-178128-5, 5 positions, 1 row, 0.200" (5.08mm) pitch, crimp termination, free-hanging, black thermoplastic, polarizing key, contacts not included.

$1.4600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-178128-5 specifications
ParameterValue
SeriesDynamic D-3200
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.200\" (5.08mm)
PackageBulk
FeaturesPolarizing Key
Rows1
Contact terminationCrimp
Positions5

Product details

It's a free-hanging (in-line) crimp housing — you terminate wires with the matching crimp socket contacts and snap them into the cavities.

Critical Note: Contacts Are Sold Separately

This is the single most common sourcing mistake on this part — the housing ships empty. You need to order the Dynamic D-3200 crimp socket terminals separately. The TE part numbers for the contacts are typically 1-178128-* series (e.g., 1-178128-2 for 20-24 AWG gold, 1-178128-1 for tin), but confirm the exact wire gauge and plating grade against your application. Without the terminals, you have a plastic shell that does nothing.

This receptacle mates with the Dynamic D-3200 series plug header (typically TE part numbers starting with 1-178128-* for the header housing, with the matching pin contacts).

Frequently asked questions

Where can I buy the 2-178128-5 and how do I get a price?

Submit your target quantity through the storefront, and we'll confirm availability and current pricing from our distribution network at quote time.

What contacts are compatible with 2-178128-5?

The 2-178128-5 accepts Dynamic D-3200 series crimp socket terminals. The housing is a receptacle for female contacts; you need the matching socket terminal (typically TE 1-178128-* series). The exact part number depends on your wire gauge and plating preference — gold for high-cycle or corrosive environments, tin for standard duty. The housing itself carries no contacts; you must order them separately.
