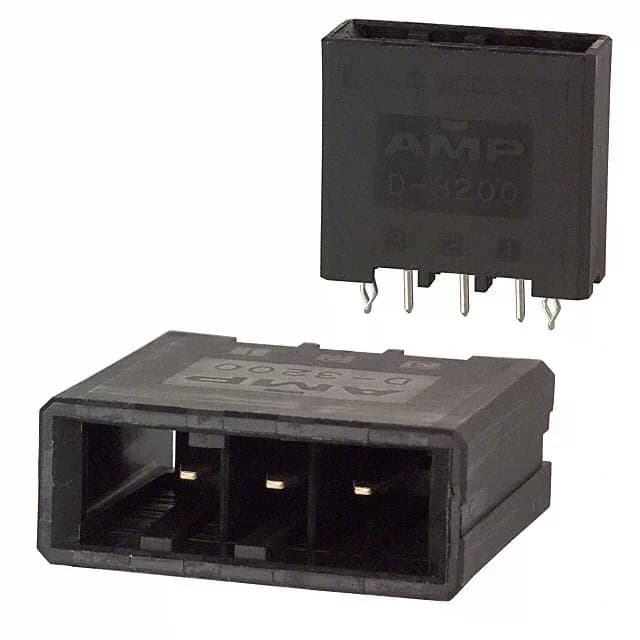

TE Connectivity AMP Connectors Dynamic D-3200 header, 3 positions, 0.200" (5.08mm) pitch, shrouded 4-wall, through-hole, gold mating contacts, board lock, UL94 V-0, -55°C~105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Mated stacking heights | 31.00mm ~ 32.50mm |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
If this header lives in a panel that gets cycled quarterly, the gold layer will outlast the equipment.
The insulation height of 0.850" (21.59mm) gives clearance for the mating connector and wire exit. Mated stacking heights range from 31.00mm to 32.50mm, which matters for enclosure z-height budgeting.
2-178136-3 is sourced per RFQ through independent distribution.
This header mates with a Dynamic D-3200 series receptacle housing that accepts the corresponding crimp terminals. The 5.08mm pitch and 3-position single-row layout define the mating half.
Yes — it carries a ROHS3 Compliant status.
