TE Connectivity AMP Connectors 2-178136-5 — Pin Headers

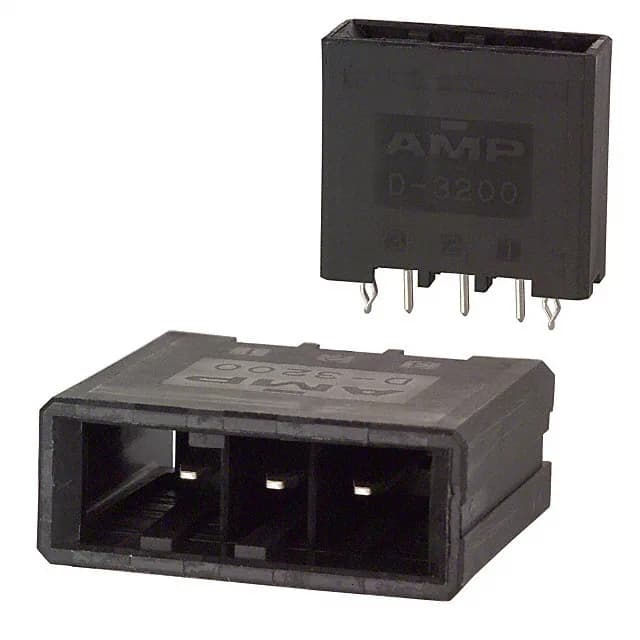

2-178136-5 TE Dynamic D-3200 Header 3 Pos 5.08mm

MPN2-178136-5
Active

TE Connectivity AMP Connectors Dynamic D-3200 series, Board to Board or Cable header, 3 circuits, 5.08mm pitch, shrouded 4-wall, detent lock, board lock, through-hole solder termination, tin-plated contacts, UL94 V-0.

$1.7200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-178136-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-178136-5 key specifications
ParameterValue
SeriesDynamic D-3200
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating600V
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.850\" (21.59mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Mated stacking heights31.00mm ~ 32.50mm

All specifications

2-178136-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows1
Pitch0.200\" (5.08mm)
Positions3
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingTin
Contact finish thickness - mating78.7µin (2.00µm)

Product details

3-position header with board lock and detent lock

The 2-178136-5: This is a 3-position, single-row header from the Dynamic D-3200 series, pitched at 5.08mm. The detent lock gives a positive click when fully mated — you feel it seat, which matters in a harness build where the connector is out of sight.

Board lock and through-hole termination

Rated for industrial environments

The mated stack height spans 31.00mm to 32.50mm, which sets the clearance between boards when used in a board-to-board configuration.

Frequently asked questions

Does 2-178136-5 have a board lock feature?

Yes, the header includes a board lock on each end to anchor it to the PCB during soldering and resist vibration.

Is 2-178136-5 RoHS compliant?

Yes, it is listed as ROHS3 Compliant.
