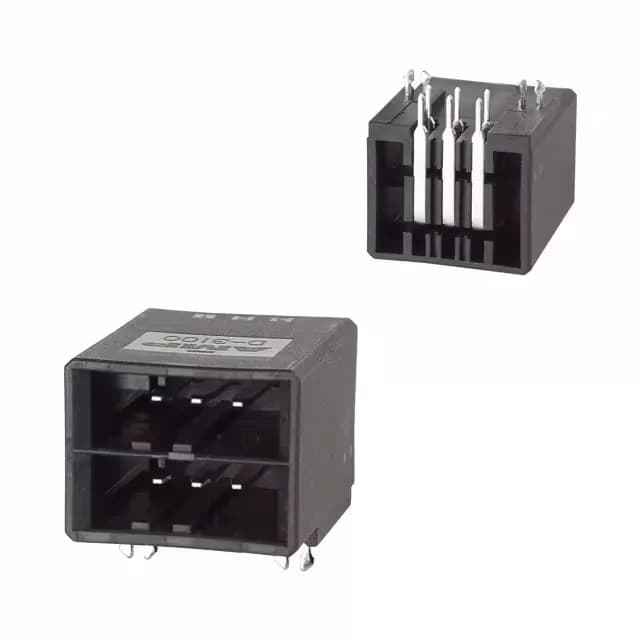

TE Dynamic D-3100 header, order code 2-178137-5, 6 positions, dual row, 0.150" (3.81 mm) pitch, 250 V, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.668\" (16.97mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 6 |
| Row spacing - mating | 0.300\" (7.62mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.131\" (3.33mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 2-178137-5 is the 6-circuit member of TE's Dynamic D-3100 header line, a shrouded dual-row through-hole right-angle connector with a 0.150" (3.81 mm) mating pitch.
The 6-position 2-178137-5 sits on the low end of the Dynamic D-3100 position range; the 0.150" (3.81 mm) pitch and 0.300" (7.62 mm) row spacing are shared across the series, so matching the circuit count to the BOM is the primary selection step.
