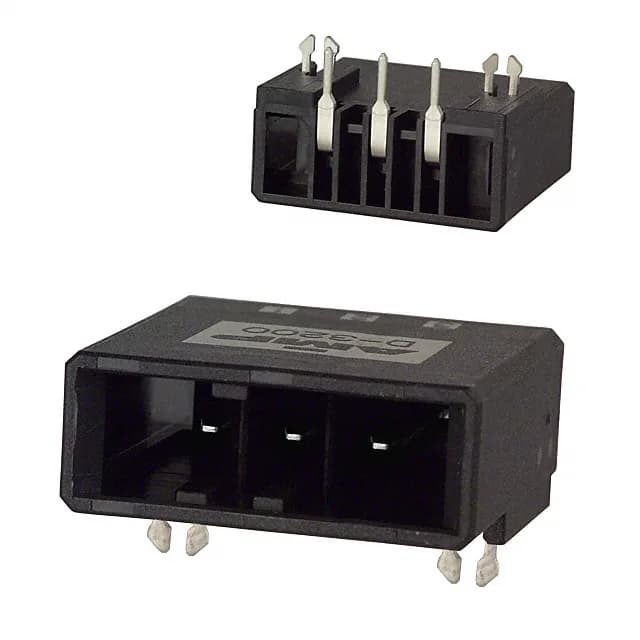

TE Connectivity AMP Connectors Dynamic D-3200 header, order code 2-178138-5, 3 positions, single row, 0.200" (5.08 mm) pitch, 600 V, tin-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 2-178138-5 is the 3-circuit member of TE's Dynamic D-3200 header line, a shrouded single-row header with a 0.200" (5.08 mm) pitch that routes power and signal in industrial equipment. Tin-plated mating contacts rated 600 V, through-hole right-angle mounting, and a board lock for solder-joint retention during wave solder.
The style is Board to Board or Cable, and the series is Dynamic D-3200.
RoHS/REACH documentation is available from TE Connectivity AMP Connectors.
