TE Connectivity AMP Connectors 2-178140-2 — Pin Headers

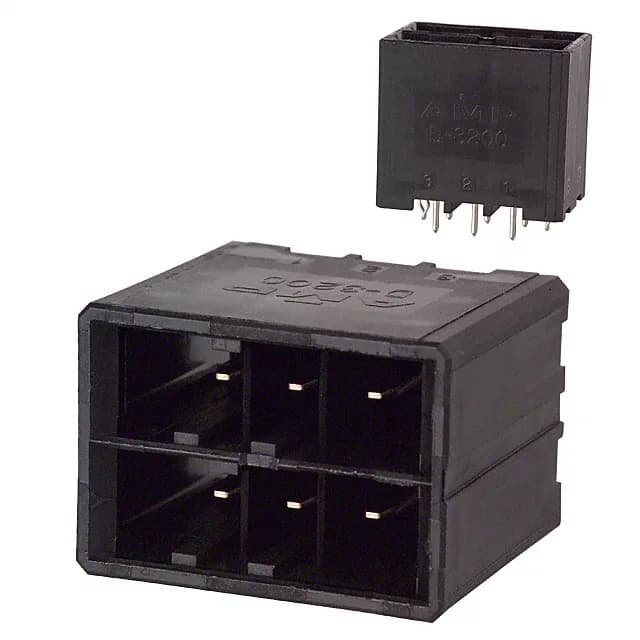

2-178140-2 TE Connectivity Dynamic D-3200 Header 6 Pos

MPN2-178140-2
Active

TE Connectivity AMP Connectors Dynamic D-3200 header, 2-178140-2, 6 positions, 2 rows, 0.200" (5.08mm) pitch, shrouded 4-wall, gold-plated mating contacts, board lock, through-hole solder termination, UL94 V-0.

$3.7600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-178140-2 datasheet (PDF)
RoHSRoHS Compliant
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-178140-2 key specifications
ParameterValue
SeriesDynamic D-3200
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating600V
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.850\" (21.59mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Mated stacking heights31.00mm ~ 32.50mm

All specifications

2-178140-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows2
Pitch0.200\" (5.08mm)
Positions6
Row spacing - mating0.300\" (7.62mm)
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingGold
Contact finish thickness - mating15.0µin (0.38µm)

Product details

6-position 5.08mm pitch header for board-to-board or cable duty

The 2-178140-2: This Dynamic D-3200 header carries 6 positions in 2 rows at a 0.200" (5.08mm) mating pitch — a spacing that gives each contact room to carry current without crowding the board trace. The 0.300" (7.62mm) row spacing keeps the two rows separated enough for easy routing. Tin on the solder tails keeps the board-level joint cost in check.

Board lock and detent lock hold the connection through vibration

The detent lock on the shroud grabs the mating receptacle — no screws or clips needed, which speeds field assembly.

Frequently asked questions

How can I order 2-178140-2 and check current pricing?

Submit an RFQ with your target quantity. We source this active TE part through distribution; pricing and lead time are confirmed at quote time. No stock-holding claim — every order is sourced fresh against your BOM line.

What is the mating connector for 2-178140-2?

This header mates with a Dynamic D-3200 receptacle housing that accepts the matching crimp terminals. The 5.08mm pitch and detent lock are specific to the D-3200 series — confirm the receptacle order code against your wire gauge and circuit count.

Is 2-178140-2 RoHS compliant?

Yes, it is RoHS compliant per the current directive. No exemption declarations needed for EU-market equipment.
