TE Connectivity AMP Connectors 2-178140-3 — Pin Headers, Sockets & Housings

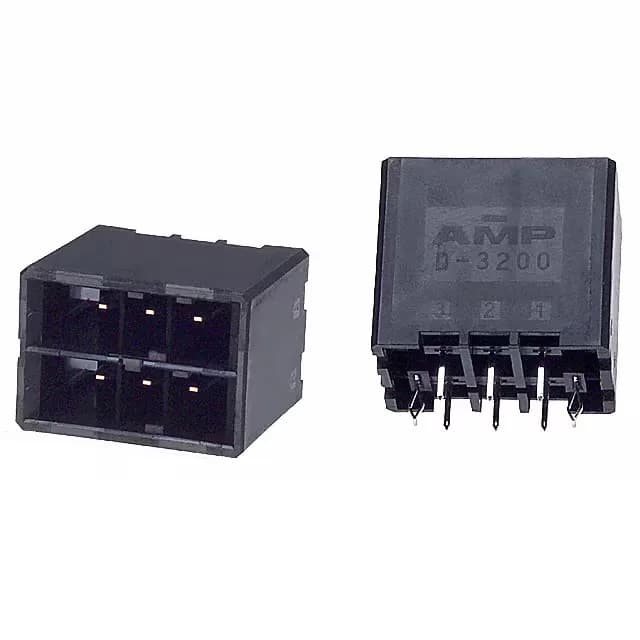

TE Dynamic D-3200 2-178140-3 Header, 6-Pos 5.08mm

MPN2-178140-3
Active

TE Connectivity AMP Connectors Dynamic D-3200 header, order code 2-178140-3, 6 positions, dual row, 0.200" (5.08 mm) pitch, 600 V, gold-plated mating contacts, through-hole, solder termination.

$3.0801Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-178140-3 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-178140-3 key specifications
ParameterValue
SeriesDynamic D-3200
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating600V
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.850\" (21.59mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Mated stacking heights31.00mm ~ 32.50mm

All specifications

2-178140-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows2
Pitch0.200\" (5.08mm)
Positions6
Row spacing - mating0.300\" (7.62mm)
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingGold
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-board or cable header with board lock

The 2-178140-3 is the 6-position member of TE's Dynamic D-3200 header series, a shrouded dual-row board-to-board or cable connector. Gold-plated mating contacts rated 600 V, through-hole mounting with board locks for retention during wave solder.

Mated stack height and operating range

The header supports mated stacking heights from 31.00 mm to 32.50 mm, with an operating temperature range of -55°C to 105°C and a UL94 V-0 rated housing. The detent lock and 4-wall shrouding protect the tab contacts from misalignment during mating.

Frequently asked questions

What is the mating style and series for 2-178140-3?

The connector is a Board to Board or Cable style, part of the Dynamic D-3200 series, with a 0.200" (5.08 mm) mating pitch.

What compliance documentation is available for 2-178140-3?

The housing carries a UL94 V-0 flammability rating. RoHS and REACH compliance documentation is available from TE Connectivity.
