6-Position, 5.08 mm Pitch Header for Industrial Power Distribution

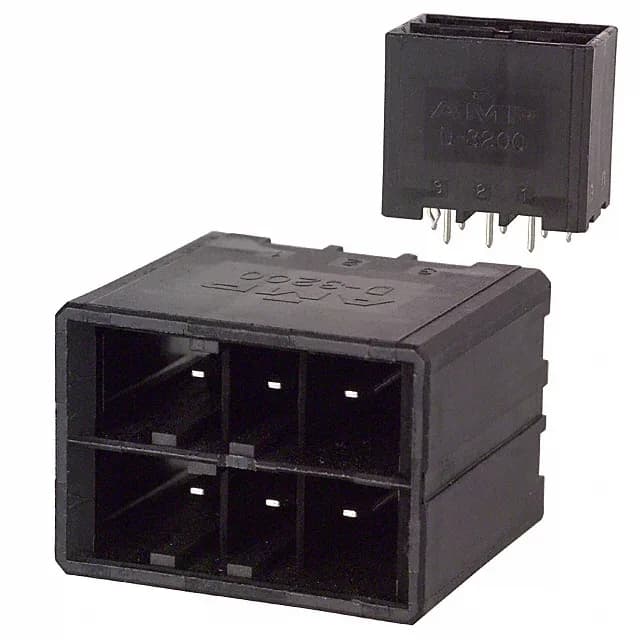

The 2-178140-5 is a 6-position, 2-row header from the TE Dynamic D-3200 series, built for board-to-board or cable-to-board power distribution in industrial and general-purpose equipment. The 5.08 mm pitch and 0.300" row spacing give generous clearance for routing higher-voltage traces and accommodating heavier wire gauges. Rated at 600 V and operating from -55°C to 105°C, this header suits control cabinets, power supplies, and machinery where the insulation system must hold up to industrial line voltages and thermal cycling.
Shrouded Housing with Board Lock for Vibration Resistance
Mated Stack Height and Contact Finish Details
The mated stack height range of 31.00 mm to 32.50 mm accommodates standard board-to-board spacings and allows for tolerance stack-up in the enclosure. Tin plating on both the mating and post surfaces (78.7 µin on the mating side) is suited for moderate mating cycle counts in controlled environments; for frequent disconnect duty, consider the gold-plated variants in the D-3200 series.
