The 3.81mm pitch is wider than the common 3.50mm or 3.96mm spacing, so it mates only with the matching Dynamic D-3100 header at that pitch. The housing carries a polarizing key to prevent cross-mating with other connectors in the same series, which matters when multiple similar housings share a harness bundle.

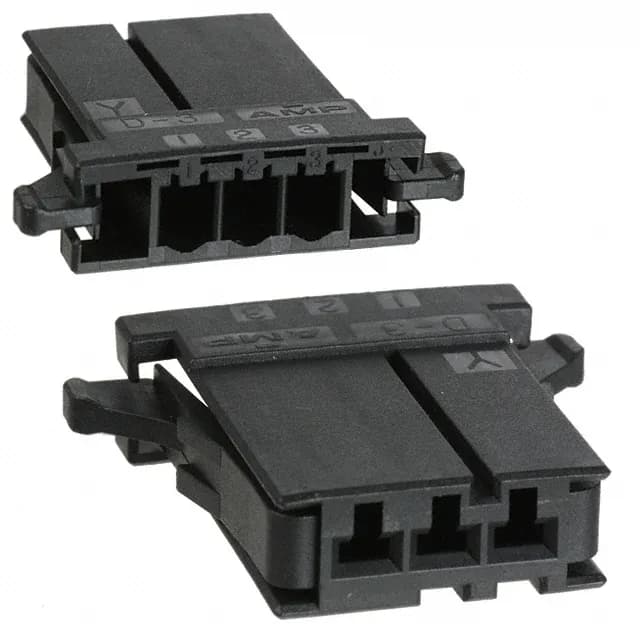

TE 2-178288-3 Dynamic D-3100 Receptacle Housing, 3 Pos
MPN2-178288-3
Active
TE Connectivity Dynamic D-3100 receptacle housing, 3 positions, 1 row, 3.81mm pitch, crimp termination, free-hanging, polarizing key, black thermoplastic, -55 to 105°C, RoHS.
$0.9500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-3100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Features | Polarizing Key |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 3 |
Product details
Frequently asked questions
Does TE 2-178288-3 include contacts?
No — the 2-178288-3 housing ships without contacts. You must order the female crimp socket terminals separately for the Dynamic D-3100 series.
What is the pitch of 2-178288-3?
The pitch is 0.150" (3.81mm) — wider than the common 3.50mm or 3.96mm spacing, so verify the mating header uses the same pitch.
