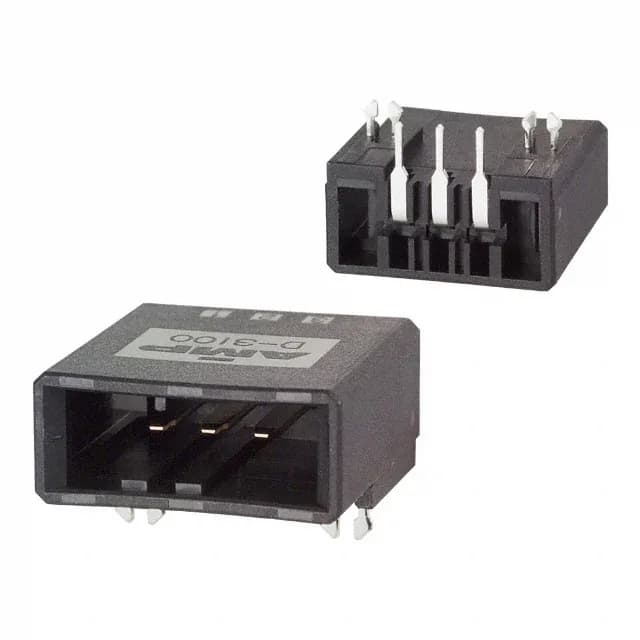

TE Connectivity AMP Connectors Dynamic D-3100 series header, 3 positions, 3.81mm pitch, gold-plated tab contacts, right-angle through-hole termination, shrouded 4-wall housing with board lock and detent lock.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The insulation height of 0.368" (9.35mm) and the post length of 0.150" (3.81mm) define the standoff from the PCB surface and the solder tail depth — check these against your board thickness and clearance to adjacent components.
ROHS3 compliant per TE's current material declaration.
Sourced to order against your BOM quantity; availability and current pricing confirmed at quote time.
