TE Connectivity AMP Connectors 2-178293-5 — Pin Headers, Sockets & Housings

2-178293-5 TE Connectivity Dynamic D-3100 Header, 3-Pos

MPN2-178293-5
Active

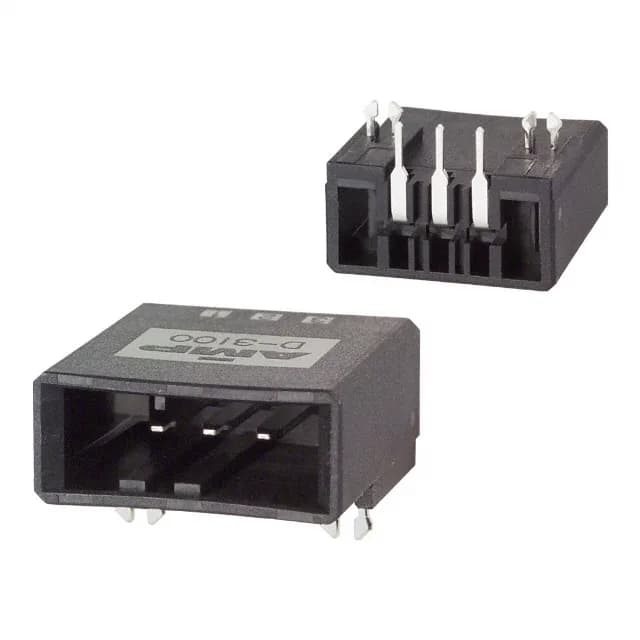

TE Connectivity AMP Connectors Dynamic D-3100 series, 2-178293-5, 3-position single-row header, 3.81mm pitch, right-angle through-hole, shrouded 4-wall, tin-plated contacts, board lock, UL94 V-0, -55°C to 105°C.

$1.0368Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-178293-5 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-178293-5 key specifications
ParameterValue
SeriesDynamic D-3100
TypeTab
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.368\" (9.35mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

2-178293-5 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows1
Pitch0.150\" (3.81mm)
Positions3
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingTin
Contact finish thickness - mating78.7µin (2.00µm)

Product details

The 2-178293-5: The post finish is also tin, compatible with standard solder processes. The glass-filled polyester housing holds its dimensional stability across that range.

This header mates with Dynamic D-3100 series socket housings — look for the matching 3-position receptacle with 3.81mm pitch. The connector is rated 250V and is suited for general-purpose and industrial applications — power distribution, control panels, and I/O modules where the 3.81mm pitch keeps the board routing manageable.

Frequently asked questions

Is 2-178293-5 compatible with TE Dynamic D-3200?

No — the 2-178293-5 is from the Dynamic D-3100 series with 3.81mm pitch. Dynamic D-3200 uses a different pitch (5.08mm) and is not pin-compatible. Stick with D-3100 socket housings for this header.
