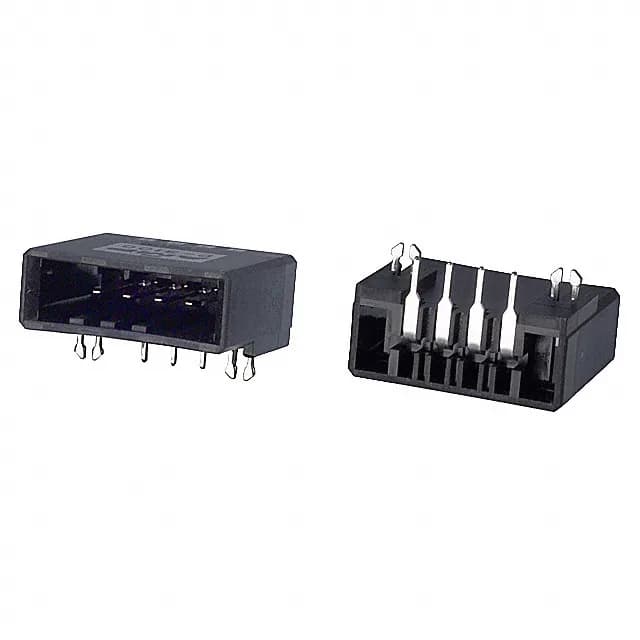

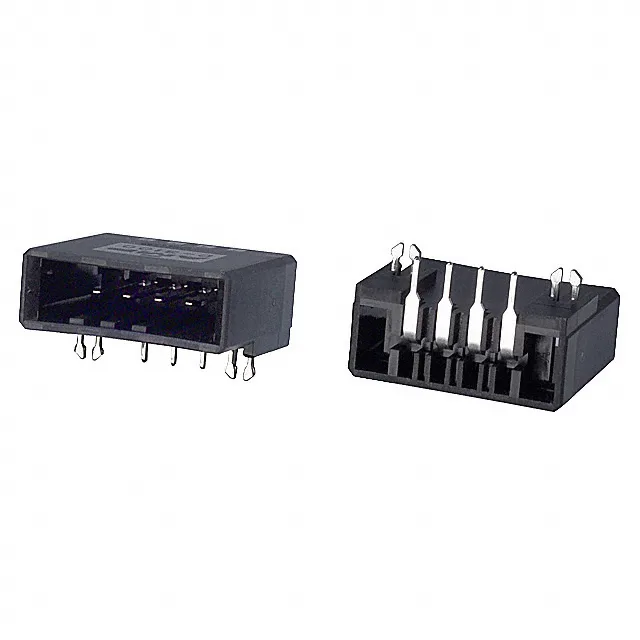

2-178294-5 TE Dynamic D-3100 Header, 4 Pos, 3.81mm

MPN2-178294-5
Active

TE Connectivity AMP Connectors Dynamic D-3100 series header, 4 positions, 0.150" (3.81mm) pitch, through-hole right angle, shrouded 4-wall, board lock, tin-plated contacts, UL94 V-0, -55°C to 105°C.

$1.0586Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-178294-5 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-178294-5 key specifications
ParameterValue
SeriesDynamic D-3100
TypeTab
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.368\" (9.35mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

2-178294-5 additional specifications
ParameterValue
StyleBoard to Board or Cable
FeaturesBoard Lock
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows1
Pitch0.150\" (3.81mm)
Positions4
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingTin
Contact finish thickness - mating78.7µin (2.00µm)

Product details

Connector Identity and Series Fit

The 2-178294-5: The connector is a Board to Board or Cable style, meaning it mates with a receptacle on a wire harness or another board — not a panel-mount or free-hanging plug. Full 4-wall shrouding protects the tab contacts during mating and prevents pin damage in blind-mate or vibration-prone installations.

Mounting and Orientation for Board Fit

Through-hole right-angle mounting means the header sits parallel to the PCB — typical for board-edge applications where the cable exits perpendicular to the board, saving z-height inside the enclosure. Contact length after post is 0.150" (3.81mm) — standard for through-hole solder joints on typical 1.6mm PCBs.

Packaged in bulk, so no tape-and-reel handling cost for through-hole assembly lines.

Frequently asked questions

What is the pitch of 2-178294-5?

The mating pitch is 0.150" (3.81mm) — wider than the common 2.54mm, so verify your board footprint matches this spacing.

Is 2-178294-5 a shrouded header?

Yes, it has a shrouded 4-wall design that protects the tab contacts during mating and prevents misalignment.
