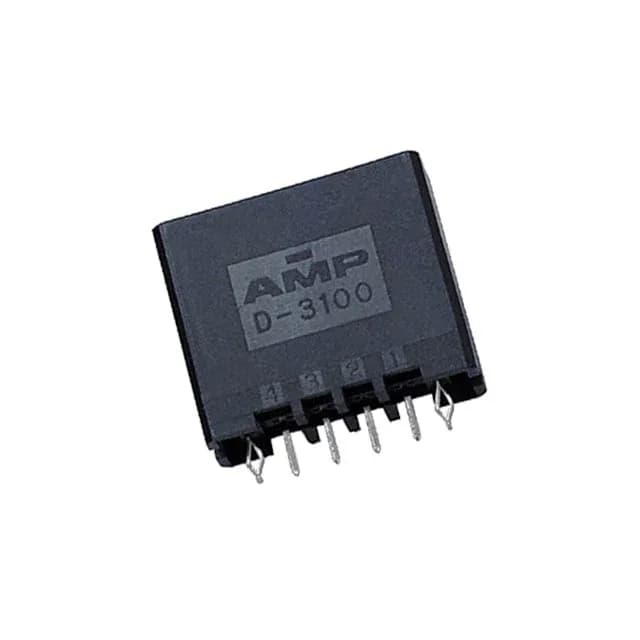

TE Connectivity AMP Connectors Dynamic D-3100 header, order code 2-178314-2, 4 positions, single row, 0.150" (3.81mm) pitch, 250 V, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 2-178314-2: The housing is a black, glass-filled thermoplastic rated UL94 V-0, with a shrouded 4-wall design and a detent lock for secure mating. A board lock aids through-hole retention during soldering.
Post contacts are tin-plated for solder termination. The rectangular tab contact shape suits general-purpose and industrial applications.
RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors.
