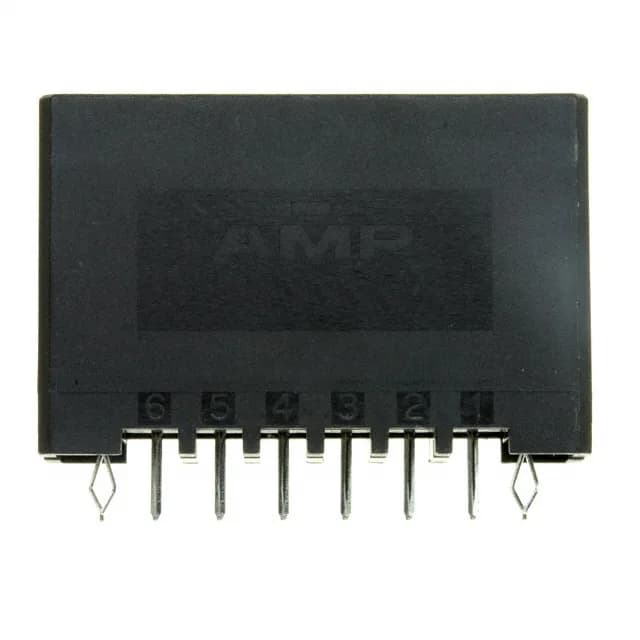

TE Connectivity AMP Connectors Dynamic D-3100 series header, 6 positions, 3.81 mm pitch, through-hole solder termination, shrouded 4-wall, tin-plated contacts, board lock, UL94 V-0, -55°C to 105°C, 250 V rating.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
For harness builders, the tab contact accepts the matching crimp terminal (sold separately) for wire-to-board applications.
The base product number is 178316, which can be used to search for compatible mating receptacles and accessories within the Dynamic D-3100 series.
The pinout follows the standard Dynamic D-3100 series layout — each position corresponds to a single tab contact. For specific circuit assignments, refer to the application drawing for the mating receptacle.
