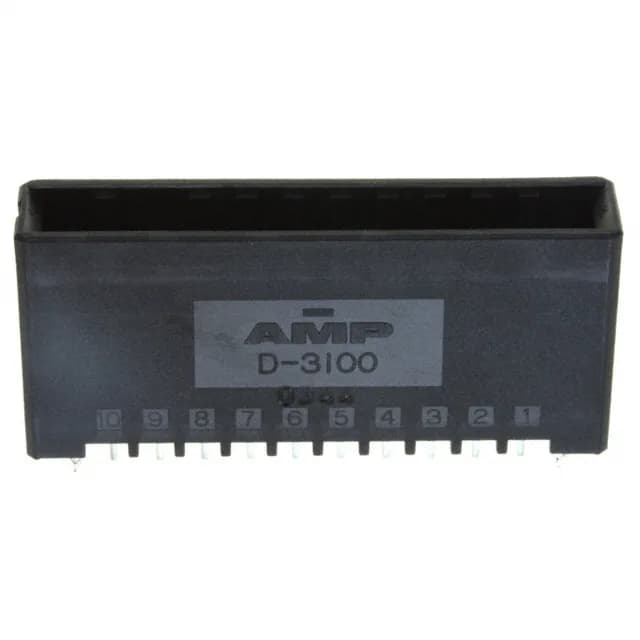

TE Connectivity AMP Dynamic D-3100 series, 2-178318-5, Board to Board or Cable header, 10 positions, 3.81 mm pitch, single row, shrouded, through hole, tin contacts, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 2-178318-5: No official successor or direct replacement is recorded from the original manufacturer.
Single-row header with 10 positions on a 3.81 mm pitch — the board footprint is 38.1 mm long plus the board lock anchors.
The tin finish is cost-effective for general-purpose industrial equipment where frequent reconnection is not required.
The 2-178318-5 is Obsolete. No stock-holding claim is made — each order is quoted individually.
No official successor or direct replacement is recorded from TE Connectivity AMP Connectors. The Dynamic D-3100 series includes other position counts and plating options, but a pin-compatible drop-in replacement is not listed. A board layout review is recommended if a functional alternative is needed.
