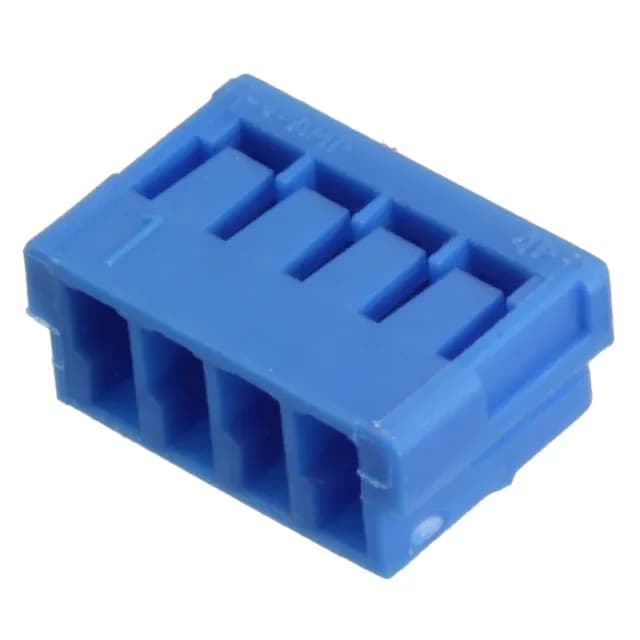

TE Connectivity CT series, 2-179228-4, 4-position single-row receptacle housing, 2.00mm pitch, blue polyamide 6/6, free-hanging crimp termination, contacts not included.
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -55°C ~ 85°C |
| Color | Blue |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 4 |
The 2-179228-4 is a 4-circuit, single-row receptacle housing from TE's CT series. It uses a 2.00mm pitch and is rated for free-hanging (in-line) crimp termination.
This housing ships empty: the listing note states contacts are not included.
It mates with a male header.
