TE Connectivity AMP Connectors 2-179276-2 — Pin Headers

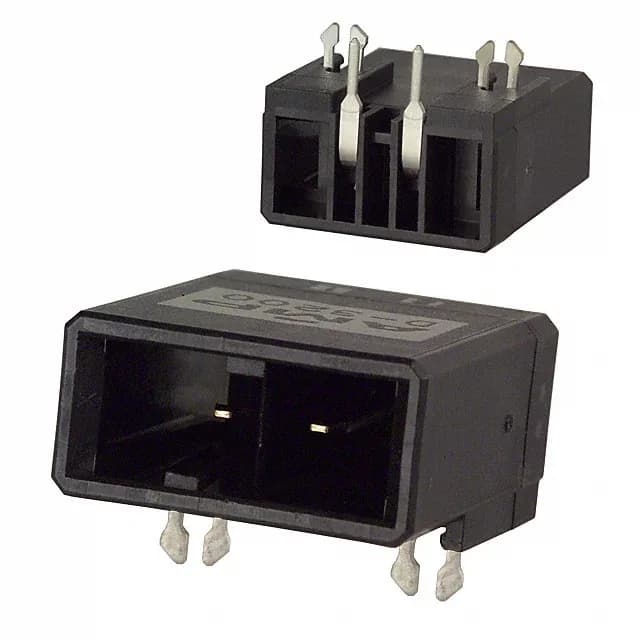

2-179276-2 TE Connectivity Dynamic D-3200 Header, 2 Pos

MPN2-179276-2
Active

TE Connectivity AMP Connectors Dynamic D-3200 series, 2-179276-2, board-to-board/cable header, 2 positions, 5.08mm pitch, right-angle through-hole, shrouded 4-wall, gold-plated mating contacts, board lock, UL94 V-0, -55°C to 105°C.

$2.3200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-3200
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-179276-2 key specifications
ParameterValue
SeriesDynamic D-3200
TypeTab
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating600V
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.368\" (9.35mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

2-179276-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTray
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows1
Pitch0.200\" (5.08mm)
Positions2
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingGold
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Right-angle 2-position header for power distribution

The 2-179276-2 is a 2-position, 5.08mm pitch header from TE's Dynamic D-3200 series, mounted through-hole with a right-angle orientation — the pins sit parallel to the board, saving height in a shallow enclosure. Rated for 600V and -55°C to 105°C, with a UL94 V-0 glass-filled polyester housing — suited for industrial control cabinets and general-purpose power distribution.

This header accepts Dynamic D-3200 series receptacle housings with tab contacts — the 5.08mm pitch and 2-position layout are the critical fit parameters.

Supplied in trays. ROHS3 compliant.
