Pitch, Position, and Footprint Fit
The 2-179277-2: The 0.200" (5.08mm) pitch and 4 positions loaded all set the board footprint — this is the dimension that must match the receptacle layout and the trace routing width.

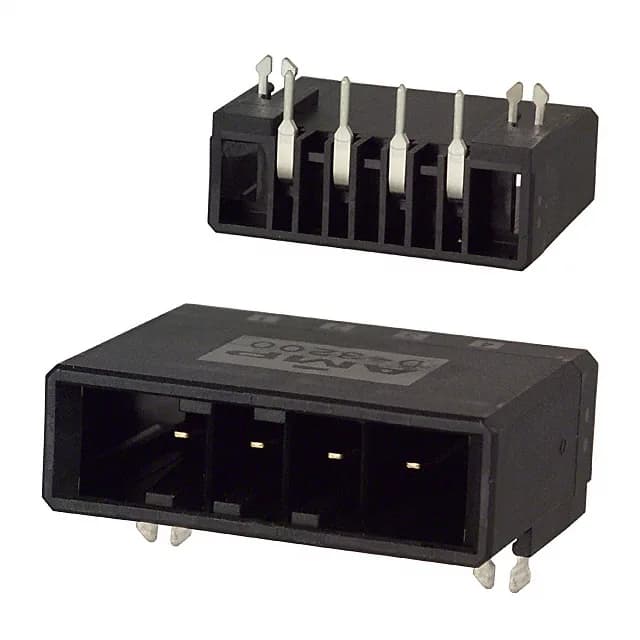

2-179277-2 TE Connectivity Dynamic D-3200 Header, 4-Pos
MPN2-179277-2
Active
TE Connectivity AMP Connectors Dynamic D-3200 series, 2-179277-2, 4-position single-row header, 0.200" (5.08mm) pitch, through-hole right-angle, shrouded 4-wall, gold-plated mating contacts with board lock, UL94 V-0, active production.
$1.6432Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-3200 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 600V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the pitch of 2-179277-2?
The mating pitch is 0.200" (5.08mm), single-row, 4 positions loaded all.
Where can I find the datasheet for 2-179277-2?
The datasheet is available through TE Connectivity's product documentation portal using the base product number 179277. It contains the full dimensional drawing, material specifications, and mating connector cross-reference.
