TE Connectivity AMP Connectors 2-179553-4 — Connector Housings

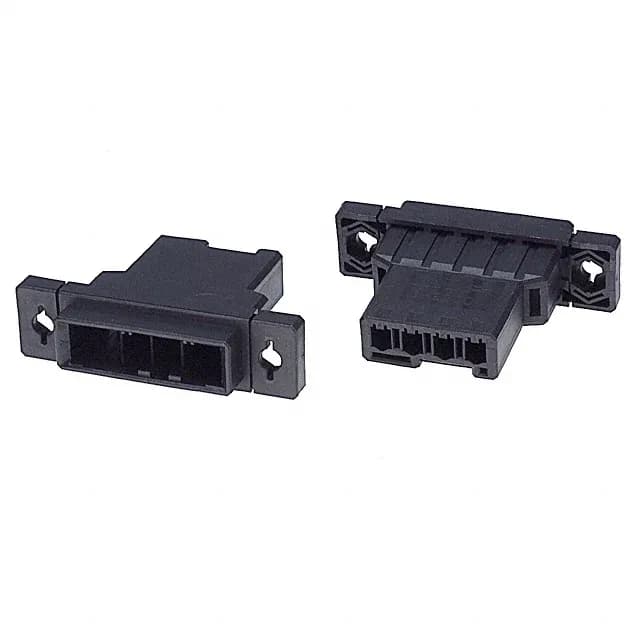

TE Dynamic D-3200 2-179553-4 Plug Housing, 4 Pos 5.08mm

MPN2-179553-4
Active

TE Connectivity Dynamic D-3200 series, 2-179553-4, 4-position plug housing, 5.08mm pitch, 1 row, panel mount, crimp termination, black thermoplastic, polarizing key.

$2.3800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-179553-4 specifications
ParameterValue
SeriesDynamic D-3200
TypeMale Pin
MountingPanel Mount
Connector typePlug
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.200\" (5.08mm)
PackageBulk
FeaturesPolarizing Key
Rows1
Contact terminationCrimp
Positions4

Product details

Terminal fit and what to order alongside it

The 2-179553-4 accepts male pin crimp terminals (Dynamic D-3000 series) that are sold separately — the housing has no contacts in the bag. You should hear the terminal latch click into the cavity; the polarizing key on the housing body ensures the plug only mates one way with the matching receptacle, so a flipped harness gets caught before the pins touch. Panel mount ears let you bolt the housing through a chassis cutout, which takes the cable strain off the terminal locks.

Mating half and sourcing

This plug mates with the Dynamic D-3200 series receptacle housing (same 5.08mm pitch, 4 circuits). The polarizing key on the plug aligns with the keyway on the receptacle — no force-fit, no wrong-way insertion.

Frequently asked questions

Does 2-179553-4 include contacts?

No — the listing explicitly notes contacts are not included. You need to order the matching Dynamic D-3000 male pin crimp terminals separately.

Is 2-179553-4 RoHS compliant?

Yes, it is listed as ROHS3 Compliant.
