TE Connectivity AMP Connectors 2-179555-6 — Connector Housings

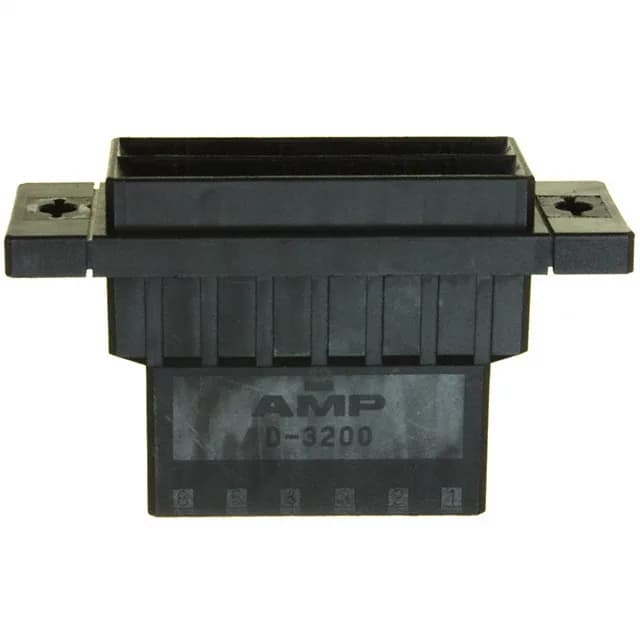

TE Dynamic D-3200 2-179555-6, 12 Pos Plug Housing

MPN2-179555-6
Active

TE Connectivity Dynamic D-3200 series, 2-179555-6, 12-position plug housing, 5.08mm pitch, 2 rows, panel mount, crimp termination, black thermoplastic, polarizing key.

$3.9900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-3200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-179555-6 specifications
ParameterValue
SeriesDynamic D-3200
TypeMale Pin
MountingPanel Mount
Connector typePlug
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.200\" (5.08mm)
PackageBulk
FeaturesPolarizing Key
Row spacing0.300\" (7.62mm)
Rows2
Contact terminationCrimp
Positions12

Product details

The 0.300" (7.62mm) row spacing and the polarizing key mean it only mates with the matching D-3200 receptacle that has the complementary keyway, so you won't jam the wrong half together on the line.

The listing says it plain: Contacts Not Included. The crimp terminals are what actually carry the current; the housing just holds them in the right grid and provides the keying and panel-mount flange. If you're filling a BOM line, make sure the terminal part number is on the same order or you'll have a housing with nothing to stuff into it.

This plug mates with the Dynamic D-3200 receptacle housing that has the matching 0.200" (5.08mm) pitch and 0.300" (7.62mm) row spacing — the polarizing key on this plug aligns with the key slot on the receptacle so the connector only goes together one way. The panel-mount feature lets you bolt the housing to a chassis or bulkhead before you mate the cable side, which is handy when the harness needs to stay put during service. The crimp termination means you can field-repair individual circuits without scrapping the whole connector.

Frequently asked questions

Where can I buy 2-179555-6 and how is it quoted?

The 2-179555-6 is an active TE part sourced through independent distribution. No stock-holding claim; submit an RFQ for your BOM quantity.

Does 2-179555-6 include contacts?

No — the listing explicitly states Contacts Not Included. This is a plug housing only; you must order the Dynamic D-3200 male pin crimp terminals separately.

What is the pitch and row spacing of 2-179555-6?

The pitch is 0.200" (5.08mm) and the row spacing is 0.300" (7.62mm). These dimensions must match the mating receptacle for proper fit.

Can 2-179555-6 be used with Dynamic 3000 series contacts?

The 2-179555-6 is from the Dynamic D-3200 series. Dynamic 3000 series contacts are a different family with different pitch and contact geometry — they are not compatible. Use only D-3200 series male pin crimp terminals.
