TE Connectivity AMP Connectors 2-1827387-3 — Connector Housings

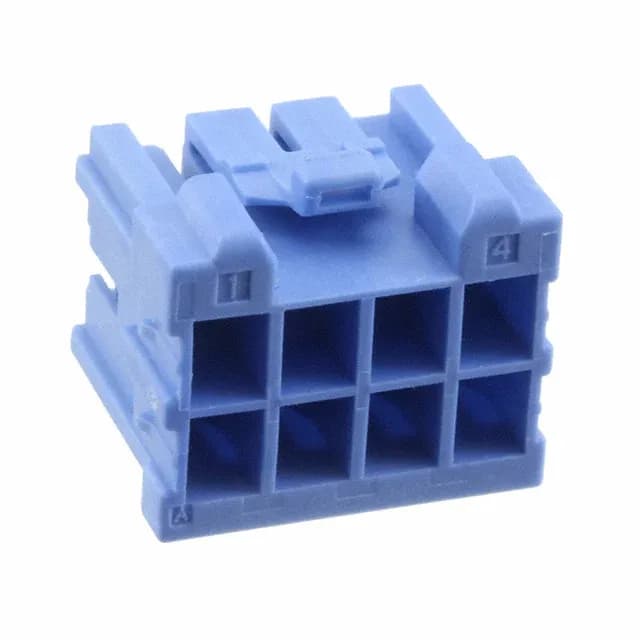

TE Grace Inertia GIC 2-1827387-3, 8 Pos Plug Housing 3.30mm

MPN2-1827387-3
Active

TE Connectivity Grace Inertia GIC, 2-1827387-3, 8 Position Plug Housing, 2 Row, 3.30mm Pitch, Crimp Termination, Free Hanging, Latch Lock, Blue, Contacts Not Included.

$0.3000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesGrace Inertia, GIC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-1827387-3 specifications
ParameterValue
SeriesGrace Inertia, GIC
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
Operating temperature-30°C ~ 105°C
ColorBlue
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
NoteContacts Not Included
Pitch0.130\" (3.30mm)
PackageBag
Row spacing0.205\" (5.20mm)
Rows2
Contact terminationCrimp
Positions8

Product details

Grace Inertia GIC Plug Housing — 8 Position, 3.30mm Pitch

The TE Connectivity 2-1827387-3 is an 8-position, 2-row plug housing from the Grace Inertia GIC series. It uses a 3.30mm pitch and a 5.20mm row spacing, with a latch lock for secure mating in free-hanging (in-line) applications. The housing is molded from glass-filled PA66 nylon in blue, rated for -30°C to 105°C operation. This is a crimp-termination housing — contacts are ordered separately.

What fits this housing — contacts and mating half

The plug mates with the corresponding Grace Inertia GIC receptacle housing (same series, female header).

Frequently asked questions

Does 2-1827387-3 include contacts?

No — the listing explicitly states 'Contacts Not Included'. You must order the matching female socket crimp terminals separately for this Grace Inertia GIC plug housing.

Where can I buy 2-1827387-3?

This part is sourced to order. Contact our sales team for current pricing and lead time at your required quantity.
