TE Connectivity AMP Connectors 2-1827393-3 — Pin Headers

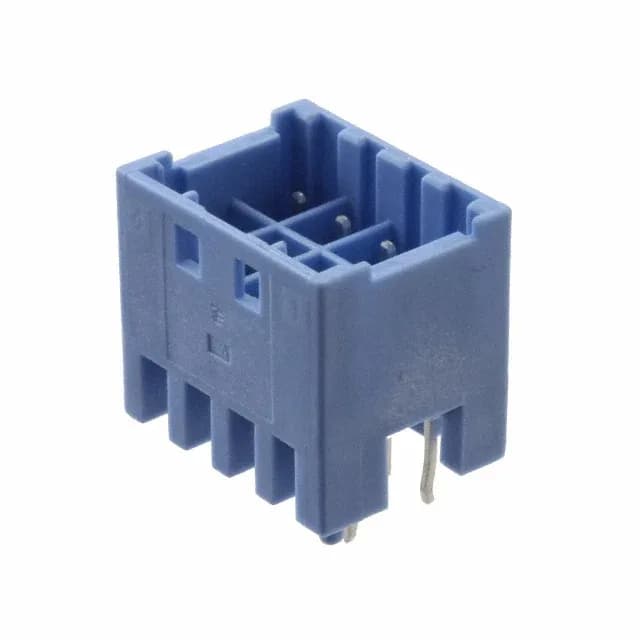

2-1827393-3 TE Connectivity Header, 8 Pos, 3.3mm Pitch

MPN2-1827393-3
Active

TE Connectivity AMP Connectors Grace Inertia, GIC series, 2-1827393-3, Board to Cable/Wire, Header, Through Hole, Solder, 8 Positions, 2 Row, 0.130" (3.30mm) Pitch, Shrouded - 4 Wall, Latch Holder, Tin Contacts, Blue Insulation, UL94 V-0, -30°C~105°C, 250VAC

$2.1700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-1827393-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesGrace Inertia, GIC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-1827393-3 key specifications
ParameterValue
SeriesGrace Inertia, GIC
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-30°C~105°C
Contact materialCopper Alloy
Insulation colorBlue
Insulation height0.528\" (13.40mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled

All specifications

2-1827393-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows2
Pitch0.130\" (3.30mm)
Positions8
Row spacing - mating0.205\" (5.20mm)
Contact finish - postTin
Contact finish - matingTin

Product details

Board-to-Wire Header for Industrial Wiring

The 2-1827393-3: The 3.30mm pitch gives more board space between traces than a typical 2.54mm header, which simplifies routing for higher-voltage or higher-current signal paths. The latch holder is a positive-lock feature — it clicks when fully seated, giving assembly feedback.

The 3.30mm pitch and 5.20mm row spacing set a larger footprint than the 2.50mm pitch of the 1-1871673-2 peer. If your board layout is already committed to a 2.54mm grid, this header won't drop in — the hole pattern is wider. The 8 positions in 2 rows give a 4+4 layout, which mates with a 8-circuit cable receptacle.

Frequently asked questions

What is the pitch and row spacing of 2-1827393-3?

The mating pitch is 0.130" (3.30mm) and the row spacing is 0.205" (5.20mm). This is a 2-row, 8-position header with all positions loaded.

Does 2-1827393-3 have a locking feature?

Yes, it uses a latch holder fastening type. The shrouded 4-wall housing includes a positive latch that locks with the mating cable connector, providing vibration-resistant retention.
