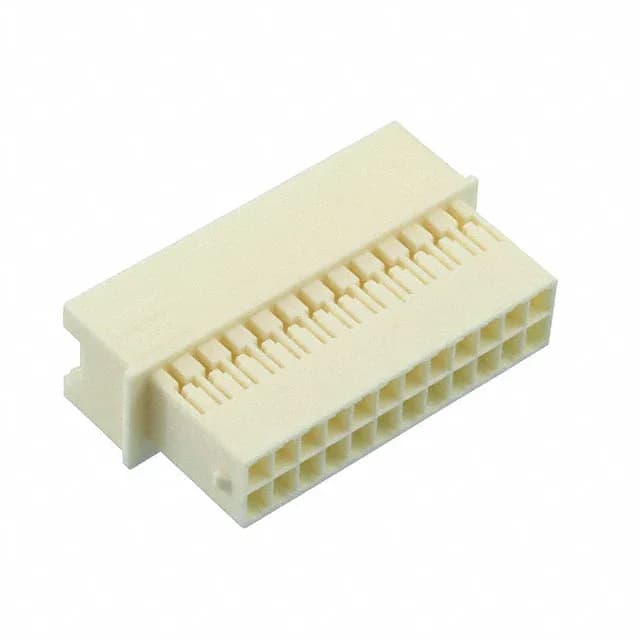

24-Circuit, Dual-Row Receptacle Housing for 2.50mm Pitch Harnesses
The housing is a free-hanging (in-line) design, so it lands in the middle of a wire harness rather than locking into a panel cutout.
The 0.098" (2.50mm) pitch is the defining dimension of the Economy Power 2.5 series — it sets the board footprint for the mating header and the contact spacing inside the housing. The dual-row arrangement packs 24 circuits into a narrower width than a single-row layout would, which matters when routing the harness through a tight cable channel or along a board edge. That symmetry means the header footprint on the PCB is a simple rectangular grid — no staggered rows to route around.
Contacts Are Not Included — What Fits This Housing
The housing accepts male pin crimp terminals from the Economy Power 2.5 contact family.
