TE Connectivity AMP Connectors, Economy Power 2.5 series, receptacle housing, 28 positions, 2 rows, 0.098" (2.50 mm) pitch, natural PA66, panel mount snap-in, crimp termination, latch holder fastening, contacts not included, -55°C to 105°C, Active, RoHS3.
| Parameter | Value |
|---|---|
| Series | Economy Power 2.5 |
| Type | Male Pin |
| Mounting | Panel Mount, Snap-In |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 105°C |
| Color | Natural |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.098\" (2.50mm) |
| Package | Bulk |
| Row spacing | 0.098\" (2.50mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 28 |

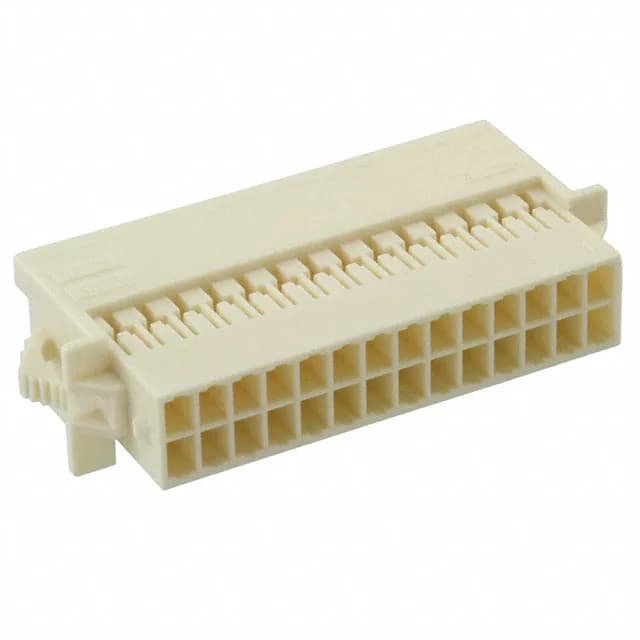

The 2-1969595-8: This is the receptacle half of the Economy Power 2.5 wire-to-board system — a 28-position, 2-row housing that accepts male pin contacts (not included).
RoHS3 compliant. The housing material is PA66.
Termination is crimp — you'll need the correct male pin contact (TE part number not listed here; cross-reference from the series catalog). The housing accepts the contact after crimping, and the latch holder secures the terminal in place.
No — the note on this part is 'Contacts Not Included'.
Yes, it is ROHS3 Compliant per the listing.
