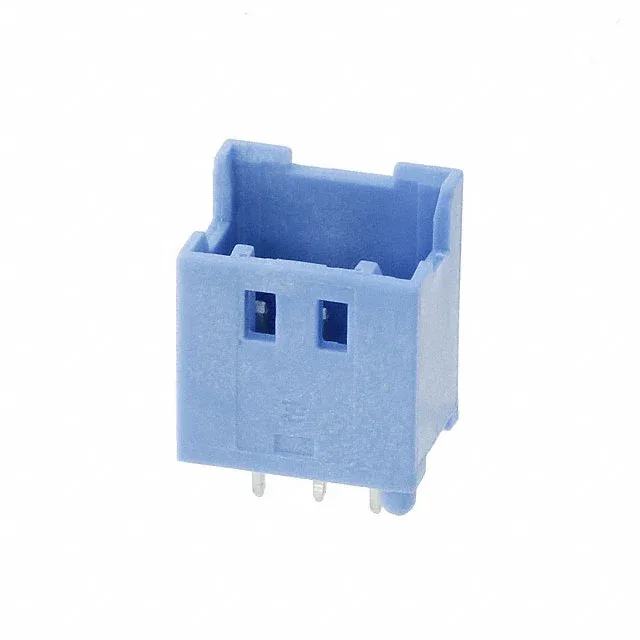

TE Connectivity AMP Connectors 2-1971032-3 — Pin Headers

2-1971032-3 TE Connectivity Header 3 Pos 2mm Pitch

MPN2-1971032-3
Active

TE Connectivity AMP Connectors, Grace Inertia GIC series, Board to Cable/Wire header, 3 positions, 2.00mm pitch, shrouded 4-wall, latch holder, board lock, through-hole solder, UL94 V-0, -30°C to 105°C, blue insulation.

$0.3800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesGrace Inertia, GIC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-1971032-3 key specifications
ParameterValue
SeriesGrace Inertia, GIC
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating50V
Current ratingVaries by Wire Gauge
Operating temperature-30°C ~ 105°C
Contact materialBrass
Insulation colorBlue
Insulation height0.256\" (6.50mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled

All specifications

2-1971032-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions3
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingTin

Product details

It's the low-circuit-count end of the series — useful when your BOM calls for a small power or signal tap off the board without wasting real estate on unused positions.

Board lock holds it down through solder and shock

On a 3-position part the mechanical advantage is small, but the lock means the solder joints don't take the full strain from a tugged wire.

The closest functional cross-shop is TE's 1-292164-1 from the CT series: same 2.00 mm pitch, same single-row shrouded header format, but with 11 positions instead of 3, a right-angle orientation, and a detent lock instead of a latch holder. For a vertical, low-count, latch-holder fit, this Grace Inertia part is the one.

Frequently asked questions

What is the recommended mating housing for 2-1971032-3?

This header mates with a Grace Inertia GIC series receptacle. The latch holder fastening requires the matching receptacle with the corresponding latch feature. Confirm the receptacle part number against your assembly drawing before committing the BOM.

Is 2-1971032-3 RoHS compliant?

Yes, it is RoHS3 compliant.
