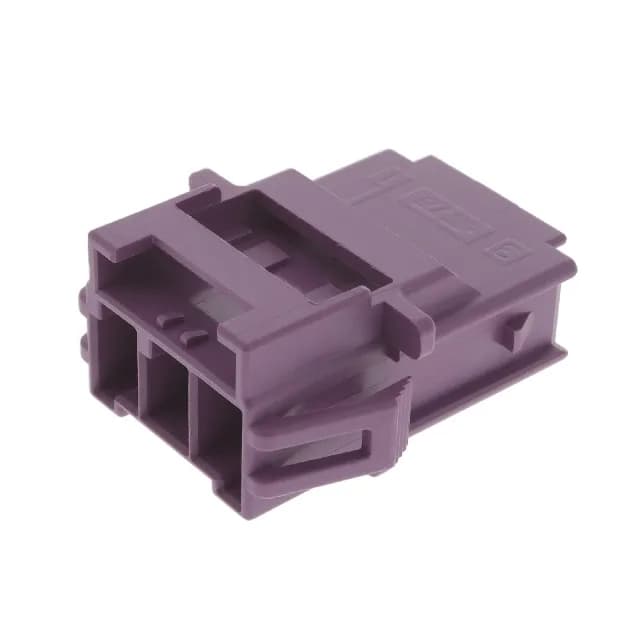

TE Connectivity AMP Connectors Power Triple Lock, Standard series receptacle housing, 3 positions, 0.236" (6.00 mm) pitch, panel mount snap-in, latch lock, glow wire compliant, purple, bulk package.
| Parameter | Value |
|---|---|
| Series | Power Triple Lock, Standard |
| Type | Tab |
| Mounting | Panel Mount, Snap-In |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -55°C ~ 105°C |
| Color | Purple |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.236\" (6.00mm) |
| Package | Bulk |
| Features | Glow Wire Compliant |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 3 |
It is ROHS3 compliant and carries a glow wire compliance feature, meeting the flame-retardant requirements for many household and industrial appliances.
Use with TE Power Triple Lock tab crimp contacts — the housing accepts the standard contact for the series. Termination is crimp-style; the mating half is a Power Triple Lock header or plug with a 6.00 mm pitch.
This housing accepts tab-type crimp contacts from the Power Triple Lock series.
