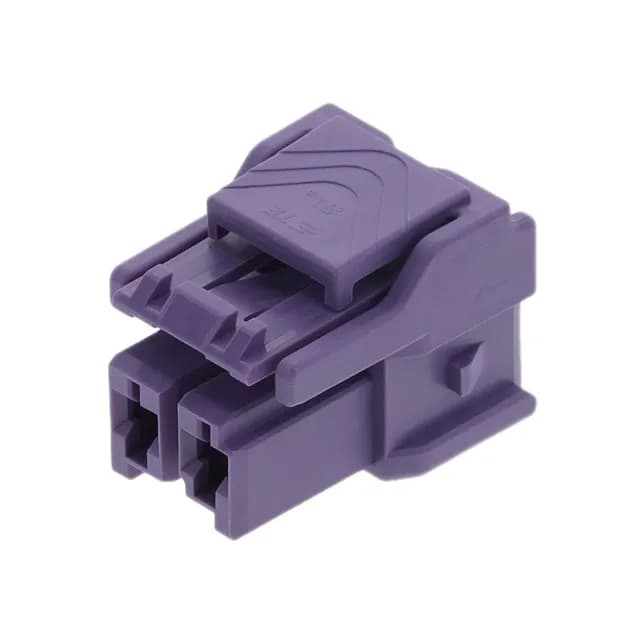

TE Connectivity AMP Connectors Power Triple Lock, Standard series plug housing, 2 positions, 6.00 mm pitch, free hanging in-line, latch holder, purple, contacts not included, bulk package.
| Parameter | Value |
|---|---|
| Series | Power Triple Lock, Standard |
| Type | Female Blade Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 105°C |
| Color | Purple |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.236\" (6.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
The 2-1971773-2: At 6.00 mm pitch, this housing gives you room for moderate current per circuit — wider than a signal connector, so you can run power alongside signal without crowding the board. Single-row layout, 2 positions — keeps the footprint small for a two-wire power or sense line. The purple colour is a visual key for the Standard series; other colours in the family mark different keying options.
No — the spec note says Contacts Not Included. This is just the plug housing.
The pitch is 0.236" (6.00 mm) and it has 2 positions in a single row. That 6.00 mm spacing is typical for power connectors — wider than signal pitches, so you can run higher current per circuit.
