TE Connectivity AMP Connectors 2-1971817-8 — Pin Headers

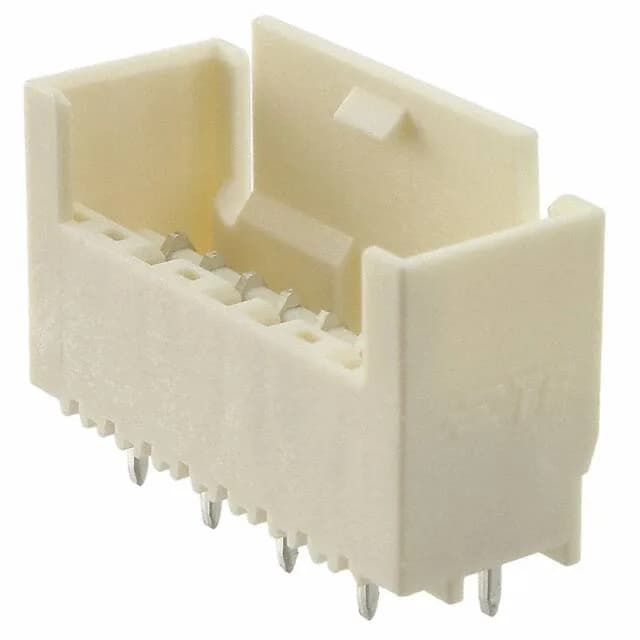

2-1971817-8 TE Connectivity Header 8 Pos 2.5 mm Pitch

MPN2-1971817-8
Active

TE Connectivity AMP Connectors 2-1971817-8 header, Board to Cable/Wire style, 8 positions, 2.50 mm pitch, single row, shrouded 4-wall, locking ramp, through-hole solder, tin-plated contacts, UL94 V-0 housing, -40°C~120°C.

$1.4500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-1971817-8 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-1971817-8 key specifications
ParameterValue
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Operating temperature-40°C~120°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.610\" (15.49mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk

All specifications

2-1971817-8 additional specifications
ParameterValue
FeaturesBoard Guide, Glow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows1
Pitch0.098\" (2.50mm)
Positions8
Contact finish - postTin
Contact length - post0.114\" (2.90mm)
Contact finish - matingTin

Product details

8-Pin 2.5 mm Header with Locking Ramp

The 2-1971817-8: This is a single-row, 8-position header on 2.50 mm pitch, designed for wire-to-board connections.

Glow Wire and Flame Rating

This means the connector can be used in equipment where a glowing or hot component must not sustain a flame — common in household appliances, HVAC, and lighting fixtures that must pass IEC 60335-1 glow-wire tests.

Temperature Range and Contact Finish

The solder posts are also tin-plated, which wets well with standard lead-free solders.

Frequently asked questions

What is the mating connector for 2-1971817-8?

This header mates with a TE Connectivity receptacle housing that accepts 2.50 mm pitch crimp terminals. Confirm the circuit count and terminal part number from the same series before ordering.
