TE Connectivity AMP Connectors 2-1971845-6 — Pin Headers

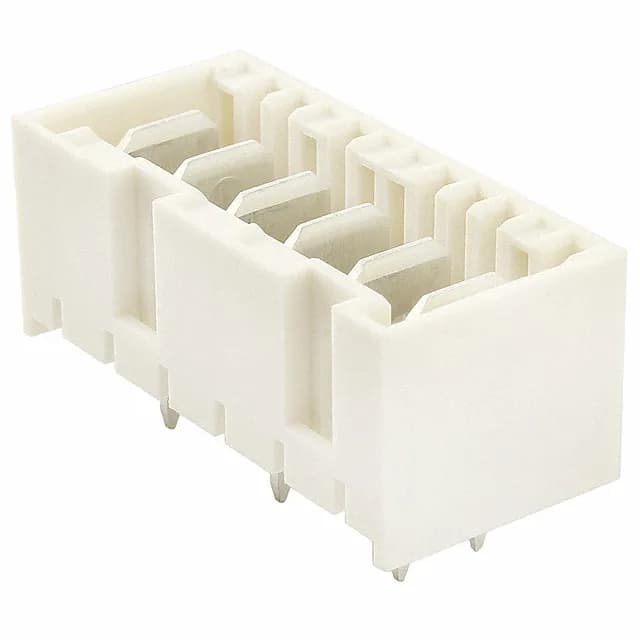

2-1971845-6 TE Connectivity Header, 6 Pos, 5mm, Latch Holder

MPN2-1971845-6
Active

TE Connectivity AMP Connectors, 2-1971845-6, Board to Cable/Wire header, 6 positions, 5.00 mm pitch, shrouded 4-wall, through hole solder, latch holder fastening, tin contacts, -40°C to 120°C operating range.

$1.5800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-1971845-6 key specifications
ParameterValue
TypeTab
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250VAC
Operating temperature-40°C ~ 120°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.504\" (12.80mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

2-1971845-6 additional specifications
ParameterValue
PackageBulk
FeaturesBoard Guide, Glow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows1
Pitch0.197\" (5.00mm)
Positions6
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingTin

Product details

5.00 mm pitch wire-to-board header with latch retention

The 2-1971845-6: This is a single-row, 6-position header on 5.00 mm pitch — a common spacing for power distribution in appliances and industrial controls.

Glow wire and board guide for appliance assembly

The board guide feature aids pick-and-place alignment during through-hole soldering, reducing skew on the board.

ROHS3 compliant, confirming no restricted substances above threshold limits. Supplied in bulk packaging; the base product number is 1971845.

Frequently asked questions

Is 2-1971845-6 RoHS compliant?

Yes, it is ROHS3 compliant per the lifecycle record.

What mating connector works with 2-1971845-6?

This header mates with a TE Connectivity AMP Connectors receptacle housing that accepts tab contacts on 5.00 mm pitch, single row, with a latch holder feature. Confirm the specific housing part number against the series base code 1971845.
