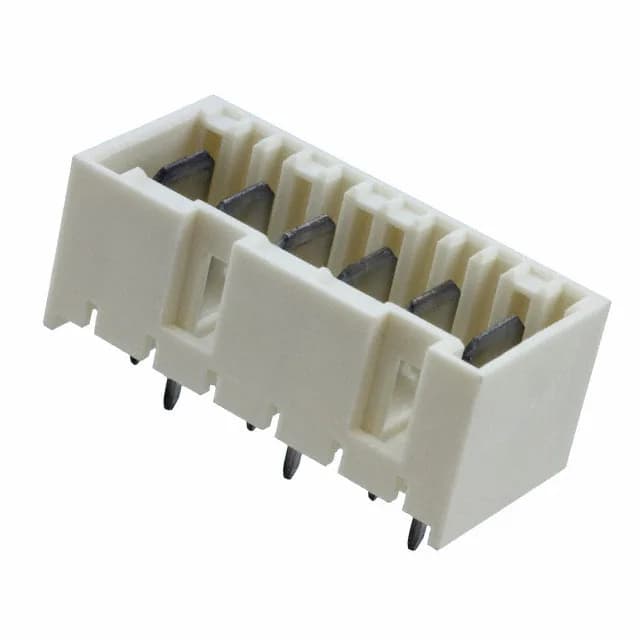

TE Connectivity AMP Connectors header, order code 2-1971846-6, 6 positions, single row, 5.00 mm pitch, 20 A, 250 VAC, silver-plated mating contacts, through hole, solder termination, latch holder.
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Current rating | 20A |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 6 |
| Contact finish - post | Silver |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Silver |
The 2-1971846-6: Silver-plated mating contacts carry 20 A at 250 VAC; the through-hole solder termination and UL94 V-0 nylon housing suit power distribution in general-purpose equipment.
The 5.00 mm pitch provides board-routing clearance for the 20 A per-circuit rating — the contact spacing supports the current without thermal crowding between adjacent circuits.
RoHS/REACH status is available from TE's compliance portal.
