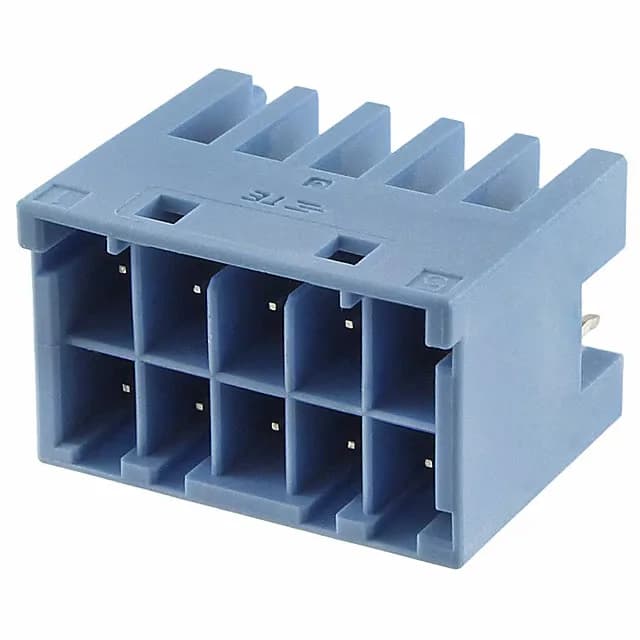

TE Connectivity AMP Connectors Grace Inertia, GIC series, 2-1971906-5, Board to Cable/Wire, Header, 10 Positions, 2 Row, 3.30mm Pitch, Through Hole, Solder, Shrouded - 4 Wall, Latch Holder, Tin Contacts, UL94 V-0, Active.
| Parameter | Value |
|---|---|
| Series | Grace Inertia, GIC |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C~105°C |
| Contact material | Brass |
| Insulation color | Blue |
| Insulation height | 0.561\" (14.25mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.130\" (3.30mm) |
| Positions | 10 |
| Row spacing - mating | 0.205\" (5.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.575\" (14.60mm) |
| Contact finish - mating | Tin |
A shrouded 4-wall design surrounds the pin field, protecting the contacts during handling and guiding the mating housing into alignment.
The kinked solder post (0.118" / 3.00mm long) provides through-hole retention during wave soldering; the kink holds the header in place before the solder solidifies. The square pin geometry mates with standard crimp receptacles in the Grace Inertia terminal family.
RoHS3 compliant per the manufacturer's declaration.
This header mates with a Grace Inertia (GIC) series receptacle housing that accepts the matching crimp terminal.
Yes, the manufacturer lists it as ROHS3 Compliant.
