TE Connectivity AMP Connectors 2-1971906-6 — Pin Headers

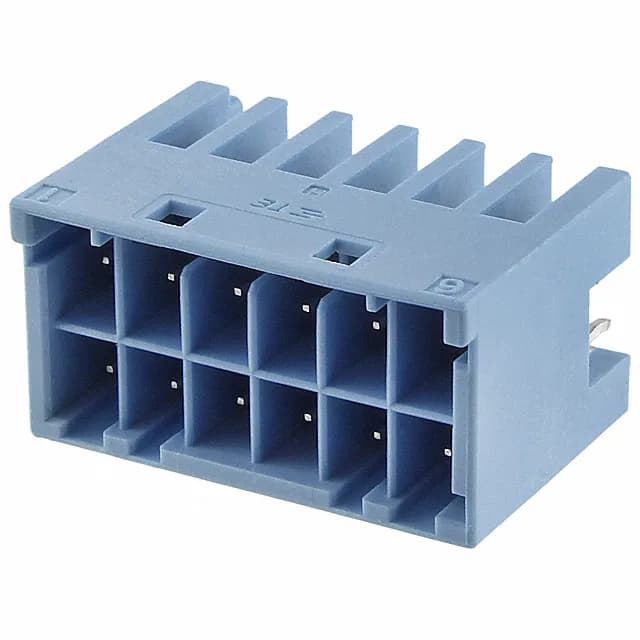

2-1971906-6 TE Connectivity Header, 12 Pos, 3.3mm

MPN2-1971906-6
Active

TE Connectivity AMP Connectors Grace Inertia, GIC series, 2-1971906-6, Board to Cable/Wire, Header, Male Pin, 12 Positions, 2 Row, 3.30mm Pitch, Shrouded - 4 Wall, Through Hole, Kinked Pin Solder, Latch Holder, 250VAC, UL94 V-0, -30°C to 105°C.

$0.4900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesGrace Inertia, GIC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-1971906-6 key specifications
ParameterValue
SeriesGrace Inertia, GIC
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-30°C ~ 105°C
Contact materialBrass
Insulation colorBlue
Insulation height0.561\" (14.25mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled

All specifications

2-1971906-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose, Industrial
Contact shapeSquare
Rows2
Pitch0.130\" (3.30mm)
Positions12
Row spacing - mating0.205\" (5.20mm)
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Overall contact length0.575\" (14.60mm)
Contact finish - matingTin

Product details

Board-to-Cable/Wire Header with 3.30mm Pitch and Latch Holder

The 3.30mm mating pitch and 5.20mm row spacing provide ample clearance for routing wires or maintaining creepage distances in industrial control panels. A latch holder fastening type secures the mating connector against vibration—a practical feature for equipment subject to continuous operation or transport.

Rated 250VAC with UL94 V-0 Housing for Industrial Enclosures

Rated 250VAC, this header suits line-voltage control circuits typical in industrial automation and general-purpose equipment.

Frequently asked questions

What is the mating connector for 2-1971906-6?

As a board-to-cable/wire header, it mates with a corresponding Grace Inertia receptacle housing and crimp terminals. The latch holder on the header engages with the mating half's latch feature. Confirm the specific receptacle part number from the Grace Inertia series for your wire gauge and circuit count.
