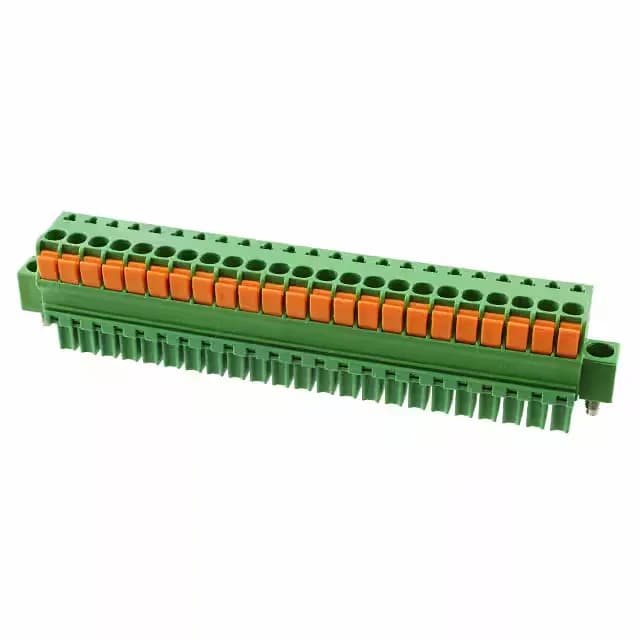

TE Connectivity AMP Connectors plug, female sockets, order code 2-1986725-3, 23 positions, 0.138" (3.50mm) pitch, 9 A, 300 V, tin-plated mating contacts, free hanging in-line, push-in spring termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 9 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.459\" (11.66mm) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 23 |
| Positions per level | 23 |
| Contact mating finish | Tin |
The 2-1986725-3 is a 23-position plug with female sockets from TE Connectivity AMP Connectors, terminated by push-in spring — no screw driver needed for the wire. Rated 9 A at 300 V with tin-plated mating contacts, it accepts 14-30 AWG (0.05-2 mm²) wire and operates from -40°C to 110°C.
Availability is confirmed per RFQ against existing surplus or distributor inventory.
Stock is not held against this obsolete part. Lead time and availability are confirmed per RFQ against surplus or distributor inventory.
