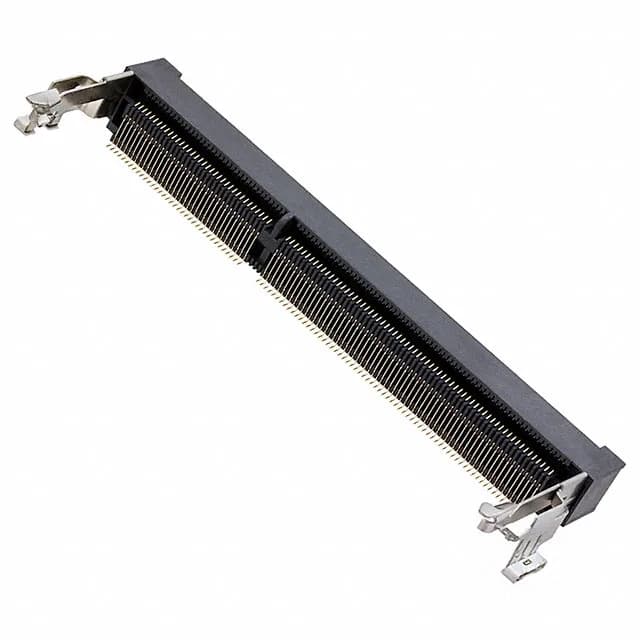

TE Connectivity AMP Connectors SODIMM connector, order code 2-2013298-1, 204 positions, DDR3 SDRAM, reverse surface-mount, 25° angle insertion, gold flash contact finish, black housing, board guide and latches.
| Parameter | Value |
|---|---|
| Memory type | DDR3 SDRAM |
| Mounting | Surface Mount |
| Mounting feature | Reverse |
| Connector type | SODIMM |
| Color | Black |
| Height | 0.315\" (8.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Latches |
| Card thickness | 0.039\" (1.00mm) |
| Contact finish | Gold |
| Insertion angle | 25° Angle |
| Positions | 204 |
| Contact finish thickness | Flash |
The 2-2013298-1 is a 204-position SODIMM connector from TE Connectivity AMP Connectors, designed for DDR3 SDRAM modules with a reverse surface-mount orientation and a 25° insertion angle. The black housing includes board guides and latches, and the contacts are finished with gold flash.
This part is classified as Obsolete by TE Connectivity AMP Connectors. The base product number is 2013298.
TE Connectivity AMP Connectors is the brand.
No pin-compatible replacement is listed by TE Connectivity AMP Connectors. A board spin is required for a functional replacement.
