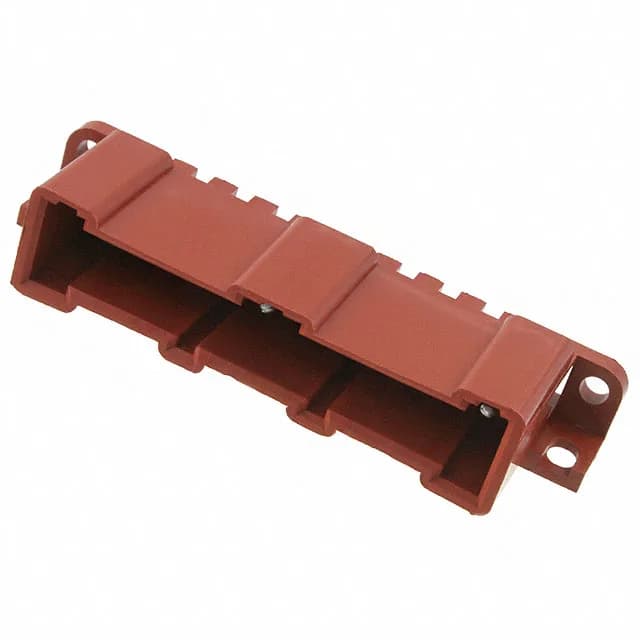

TE Connectivity Metrimate header, order code 2-208403-1, 10 positions, single row, 5.08 mm pitch, 7.5 A, 600 V, tin-lead mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Metrimate |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 600V |
| Current rating | 7.5A |
| Operating temperature | -55°C ~ 130°C |
| Contact material | Copper Alloy |
| Insulation color | Red |
| Insulation height | 0.550\" (13.97mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.200\" (5.08mm) |
| Positions | 10 |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Tin-Lead |
The 2-208403-1 is the 10-circuit single-row member of TE's Metrimate header line, pitched at 5.08 mm for board-to-board or cable duty.
No stock-holding claim — sourced per request.
The 2-208403-1 is a Board to Board or Cable style header.
