TE Connectivity AMP Connectors 2-215079-0 — Female Socket Headers

2-215079-0 TE Connectivity Micro-MaTch 20-Position

MPN2-215079-0
Active

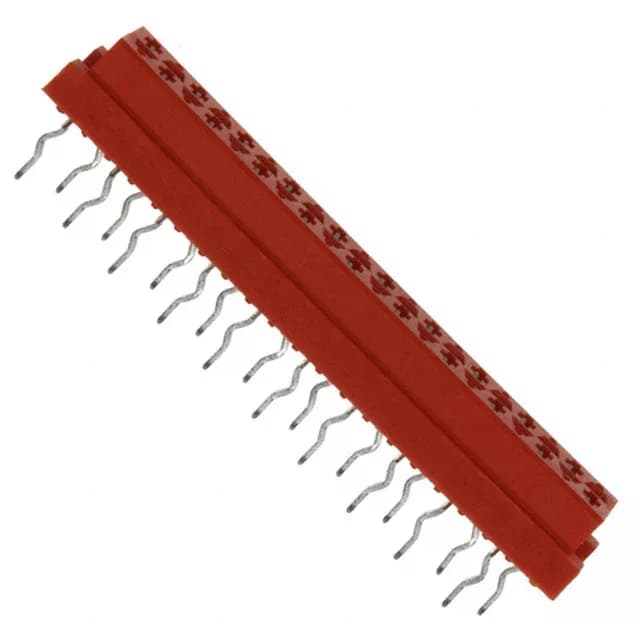

TE Connectivity AMP Connectors Micro-MaTch series, 2-215079-0, female socket receptacle, 20 positions, dual-row, 0.100" (2.54mm) pitch, through-hole, kinked pin solder termination, tin-plated forked contacts, -40°C to 105°C operating range.

$2.0200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-MaTch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-215079-0 key specifications
ParameterValue
SeriesMicro-MaTch
TypeForked
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating100VDC
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorRed
Insulation height0.157\" (4.00mm)
Insulation materialPolybutylene Terephthalate (PBT), Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

2-215079-0 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTape & Reel (TR) Cut Tape (CT)
TerminationKinked Pin, Solder
ApplicationsAutomotive, General Purpose
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin

Product details

20-position dual-row receptacle for board-to-board or cable harness

This TE Micro-MaTch receptacle, order code 2-215079-0, is a 20-position, dual-row female socket header on a 0.100" (2.54mm) pitch. Rated for 100 VDC and an operating range of -40°C to 105°C, the glass-filled PBT housing carries a UL94 V-0 flammability rating.

Termination is through-hole with kinked, tin-plated posts — the kink provides a mechanical interference fit in the plated hole before soldering, improving positional accuracy during wave or hand solder. The post length of 0.122" (3.10mm) suits standard 1.6mm PCBs; the insulation height of 0.157" (4.00mm) leaves clearance for trace routing under the body.

Available in tape-and-reel or cut-tape packaging.

Frequently asked questions

What is the pitch of TE 2-215079-0?

The mating pitch is 0.100" (2.54mm), and the row spacing is also 0.100" (2.54mm). This is a standard 0.100" grid dual-row layout.

Is 2-215079-0 RoHS compliant?

Yes, it is ROHS3 compliant.

What is the closest functional alternative to 2-215079-0?

The closest peer in the Micro-MaTch series is 2-215460-0, which is a right-angle version of the same 20-position, 0.100" pitch receptacle. The straight through-hole 2-215079-0 is the vertical-mount variant.
