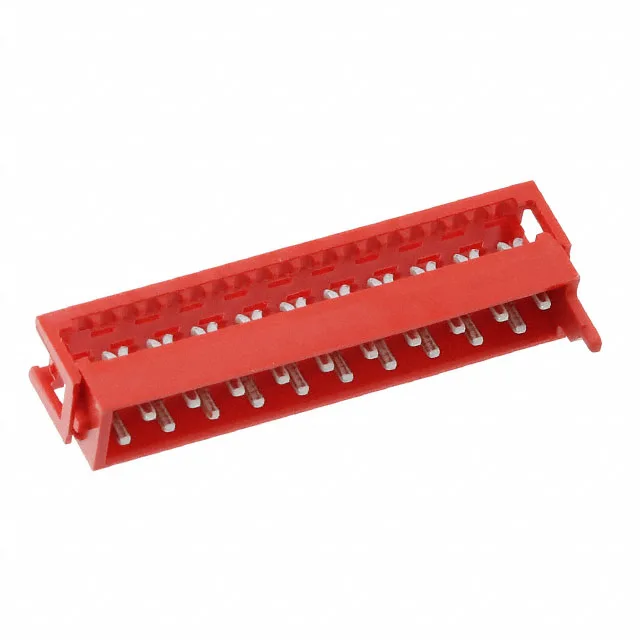

2-215083-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity Micro-MaTch 2-215083-0, 20-Pin IDC Plug

MPN2-215083-0
Active

TE Connectivity Micro-MaTch series, IDC plug, 20 positions, 2 rows, 0.100" (2.54 mm) pitch, 0.059" (1.50 mm) row spacing, tin-plated male pins, free-hanging, 28 AWG ribbon cable termination, red housing.

$2.8500Ref. price · indicative, final on quote
2-215083-0 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

2-215083-0 Technical Specifications
ParameterValue
SeriesMicro-MaTch
Wire typeRibbon Cable
GenderMale Pin
Mounting typeFree Hanging (In-Line)
Connector typePlug
Wire gauge28 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesFeed Through
Row spacing0.059\" (1.50mm)
Contact finishTin
Rows2
Positions20

Product details

20-Position IDC Plug for Ribbon Cable Harnesses

The red housing provides visual identification on the harness. Termination is via IDC (insulation displacement) — no wire stripping or crimping required. The plug accepts 28 AWG ribbon cable and the tin-plated male pins make contact with the mating header's female spring contacts. The free-hanging (in-line) mounting style suits cable-to-board runs where the connector floats off the PCB.

The IDC termination locks the cable into the plug body — the assembly then mates directly to the board-mounted header. The Feed Through feature means the cable passes through the connector body, simplifying daisy-chain routing in multi-drop harnesses.

Frequently asked questions

Where can I buy 2-215083-0?

Submit a request for current pricing and availability — confirmed at quote time.

What is the mating connector for 2-215083-0?

The header is the board-mounted half; the plug terminates the ribbon cable.
