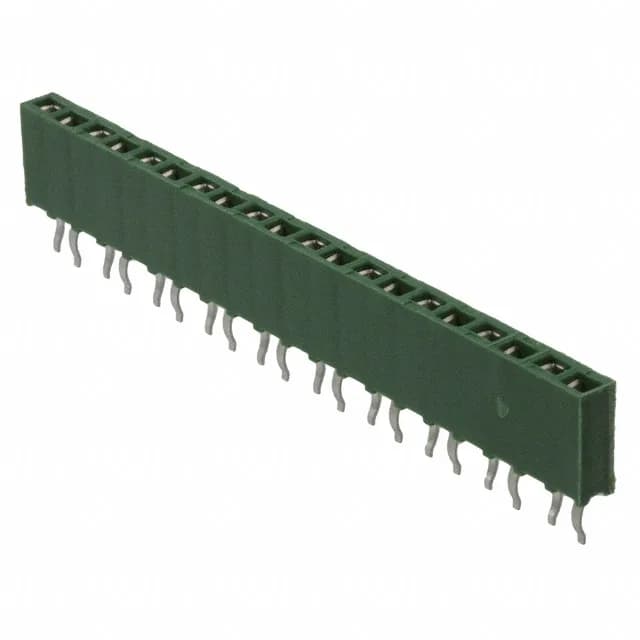

TE Connectivity AMP Connectors 2-215297-0 — Female Socket Headers

2-215297-0 TE Connectivity AMPMODU HV-100 Female Socket

MPN2-215297-0
Active

TE Connectivity AMP Connectors AMPMODU HV-100, Female Socket Header (Receptacle), 20 positions, 0.100" (2.54mm) pitch, Through Hole, Kinked Pin, Solder termination, Gold mating contacts, UL94 V-0, Active.

$5.4300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-215297-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU HV-100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-215297-0 key specifications
ParameterValue
SeriesAMPMODU HV-100
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack or Green
Insulation height0.276\" (7.00mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTray

All specifications

2-215297-0 additional specifications
ParameterValue
TerminationKinked Pin, Solder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions20
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingGold
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating31.5µin (0.80µm)

Product details

20-position single-row receptacle for board-to-board stacking

The 2-215297-0: This is a 20-position, single-row female socket header from the AMPMODU HV-100 series, designed for board-to-board stacking.

Through-hole with kinked pins — what that means for assembly

The post finish is tin (118.1µin / 3.00µm) — good for solderability, but note that tin is the mating surface for the post, not the contact beam. Insulation height is 0.276" (7.00mm), which sets the mated stack height when paired with a matching header.

Frequently asked questions

What is the pitch of 2-215297-0?

The pitch is 0.100" (2.54mm), single row, 20 positions loaded all.

Is 2-215297-0 a through-hole connector?

Yes, it is a through-hole connector with kinked pins for solder termination.
