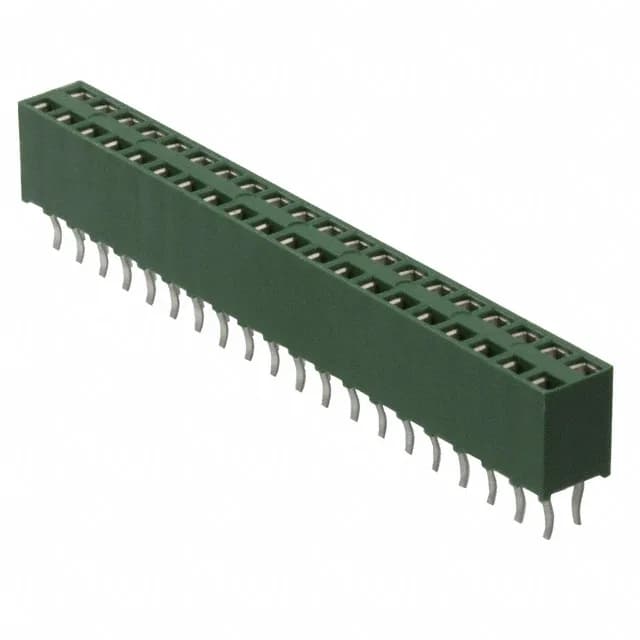

TE Connectivity AMPMODU HV-100, 40-position dual-row female socket receptacle, 0.100" (2.54 mm) pitch, through-hole kinked-pin termination, gold mating finish, UL94 V-0, tray pack.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black or Green |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 2-215307-0: The gold mating finish at 31.5 µin (0.80 µm) supports repeated insertion cycles without contact fretting, while the tin-plated posts (98.4 µin) solder cleanly into a through-hole board.
The mating pitch is 0.100" (2.54 mm), with the same spacing between rows.
Yes, it is ROHS3 compliant.
The receptacle accepts square pins of the same 0.100" pitch spacing. The contact shape is square (female socket), designed to mate with 0.025" square header pins typical of the AMPMODU HV-100 series.
