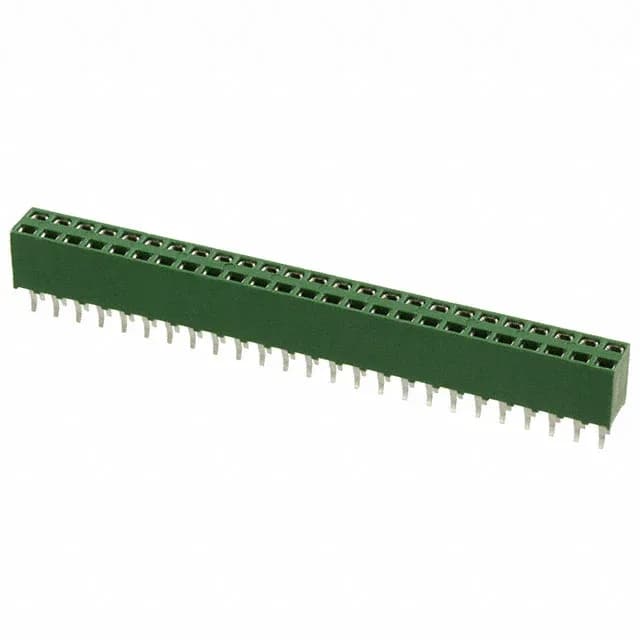

TE Connectivity AMP Connectors AMPMODU HV-100 series, 2-215307-5, Board to Board receptacle, 50 positions, 0.100" (2.54mm) pitch, dual-row, through-hole, kinked pin solder termination, gold mating finish, green polyester glass-filled housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU HV-100 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Green |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tray |
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 2-215307-5: The mating finish is gold at 31.5 microinches (0.80µm) — enough for repeated mating cycles in controlled environments without the cost of a heavy gold deposit.
RoHS3 compliant per the current directive.
Buyers need to confirm mechanical compatibility with their PCB layout before ordering.
Sourcing buyers need immediate availability to avoid production delays.
Design engineers and brokers need to know if the part is end-of-life to plan for alternatives or long-term availability.
Buyers may seek alternate sources or second-sourcing options for cost or supply chain resilience.
Ensures proper connection in board-to-board applications; critical for design validation.
Bulk buyers need pricing to compare with alternatives and budget their BOM.
