TE Connectivity AMP Connectors 2-215309-0 — Female Socket Headers

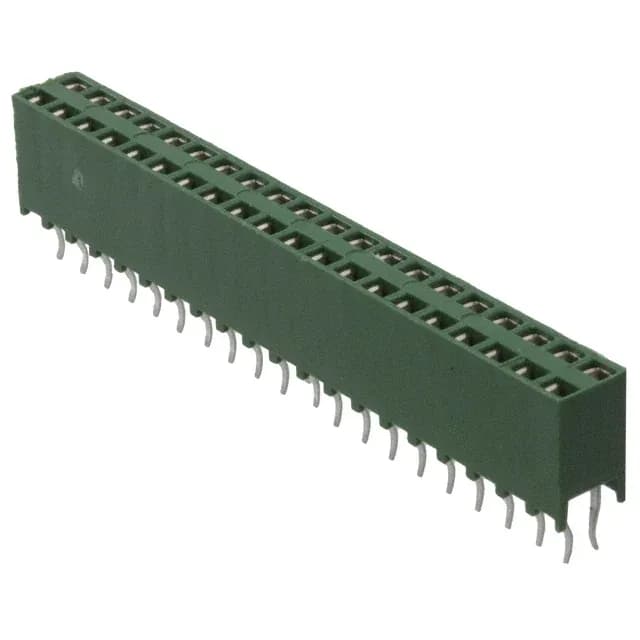

2-215309-0 TE Connectivity AMPMODU HV-100 40-Pin Receptacle

MPN2-215309-0
Active

TE Connectivity AMP Connectors, AMPMODU HV-100 series, 40-position dual-row receptacle, 0.100" (2.54 mm) pitch, gold-plated square female sockets, through-hole kinked-pin termination, UL94 V-0 housing, bulk packaging.

$6.5100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU HV-100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-215309-0 key specifications
ParameterValue
SeriesAMPMODU HV-100
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack or Green
Insulation height0.335\" (8.51mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk

All specifications

2-215309-0 additional specifications
ParameterValue
TerminationKinked Pin, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions40
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingGold
Contact finish thickness - post98.4µin (2.50µm)
Contact finish thickness - mating31.5µin (0.80µm)

Product details

40-position board-to-board receptacle in the AMPMODU HV-100 line

Housing is glass-filled polyester rated UL94 V-0, black or green depending on the production run — color does not affect fit or function.

No direct replacement or successor has been issued by TE for this order code. The base product number is 215309.

Gold plating depth vs. peer receptacles

The 31.5 µin gold on the mating contact is thicker than the 8.00 µin gold found on the 5-position and 3-position AMPMODU receptacles (1376775-2, 1376775-3). Compared to the tin-plated 1-2823056-2 (12 positions, 118.1 µin tin on mating), this part uses gold-on-gold interface — the choice depends on whether the application needs tin's lower cost or gold's corrosion resistance in low-current signal paths.

Frequently asked questions

What is the datasheet for 2-215309-0?

Design engineers need detailed specifications and dimensions to validate fit.

Where can I buy 2-215309-0?

Sourcing buyers need to find distributors and purchase the part.

Is 2-215309-0 in stock?

Availability affects lead time and production schedules.

What is the price of 2-215309-0?

Budgeting and cost comparison are critical for procurement.

What is the mating connector for 2-215309-0?

Engineers need to ensure compatibility with the header.

Is 2-215309-0 obsolete or has a replacement?

Brokers and maintenance techs need lifecycle info to avoid supply issues.
