20-position dual-row receptacle for board-to-board or cable harness

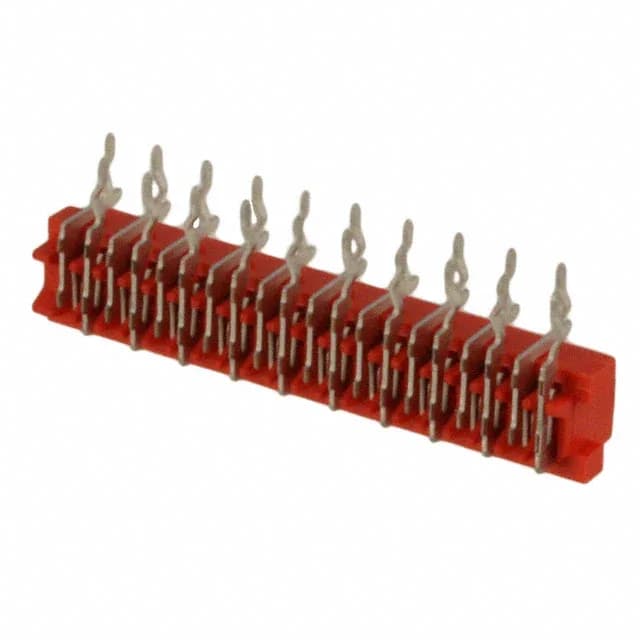

The 2-215460-0 is a 20-position, dual-row female receptacle from TE's Micro-MaTch series, designed for board-to-board or cable-to-board interconnects at a 2.54mm pitch. It uses a through hole, right-angle mounting orientation, which places the mating face parallel to the PCB — useful for edge-card or mezzanine layouts where vertical clearance is tight. The tin-plated contacts on both mating and post sides suit moderate-cycle applications where cost per position matters more than gold's high-cycle endurance.
Kinked pin termination and housing retention for wave solder
Termination is kinked pin, solder — the kink provides a mechanical interference fit in the plated through hole, holding the connector in place during wave solder without secondary clips. The red PBT/polyester housing carries a UL94 V-0 flammability rating, meeting the flame-retardant requirement for equipment inside an enclosure. Operating temperature spans -40°C to 105°C, covering automotive cabin and general-purpose industrial cabinet environments.
Active production, sourced per RFQ
It is ROHS3 compliant and available in Tape & Reel or Cut Tape packaging for automated assembly lines.
