TE Connectivity AMP Connectors 2-215464-0 — Pin Headers

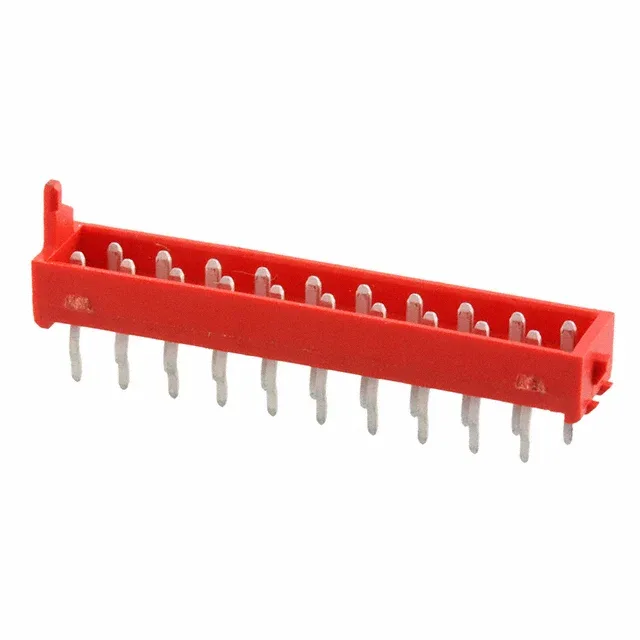

2-215464-0 TE Connectivity Micro-MaTch Header, 20 Pos

MPN2-215464-0
Active

TE Connectivity AMP Connectors Micro-MaTch series, 2-215464-0, shrouded header, 20 positions, 2.54mm pitch, dual row, through hole, press-fit/solder termination, latch lock, tin contacts, 1.5A, 230V, UL94 V-0.

$1.2276Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-215464-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-MaTch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-215464-0 key specifications
ParameterValue
SeriesMicro-MaTch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock
Voltage rating230V
Current rating1.5A
Operating temperature-40°C~105°C
Contact materialBrass
Insulation colorRed
Insulation height0.142\" (3.60mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled

All specifications

2-215464-0 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTape & Reel (TR); Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsGeneral Purpose
Contact shapeRectangular
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.122\" (3.10mm)
Contact finish - matingTin
Contact finish thickness - mating118.1µin (3.00µm)

Product details

The 2-215464-0: Rated at 1.5A per contact and 230V, this header suits low-power signal and control circuits where the current per line stays well below the contact's thermal ceiling.

Termination is press-fit and solder compatible through the through-hole mounting style. The 0.122" (3.10mm) post length provides sufficient standoff for wave soldering or press-fit insertion into a plated through-hole board. The insulation height of 0.142" (3.60mm) and red PBT glass-filled housing (UL94 V-0) offer a compact profile with flame-retardant performance for equipment inside enclosures requiring a V-0 rating.

This header mates with Micro-MaTch series receptacles (female connectors) that accept the same 2.54mm pitch and dual-row configuration.

Frequently asked questions

What is the mating connector for 2-215464-0?

The 2-215464-0 mates with a Micro-MaTch series receptacle (female connector) that has the same 2.54mm pitch, dual-row configuration, and latch lock feature. The shrouded 4-wall header guides the receptacle into alignment during mating.

Is 2-215464-0 RoHS compliant?

Yes, the 2-215464-0 is ROHS3 compliant, meeting the latest RoHS directive requirements.
