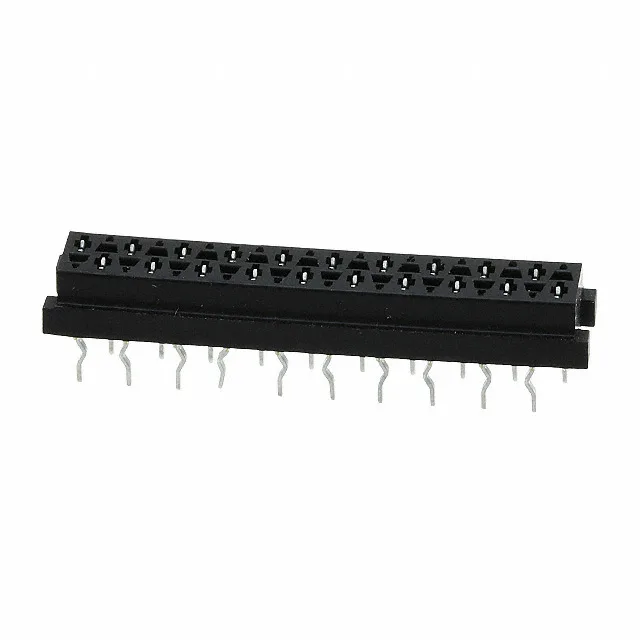

TE Connectivity AMP Connectors 2-2178710-0
MPN2-2178710-0
Obsolete
$0.9700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -30°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose, Telecommunications |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
