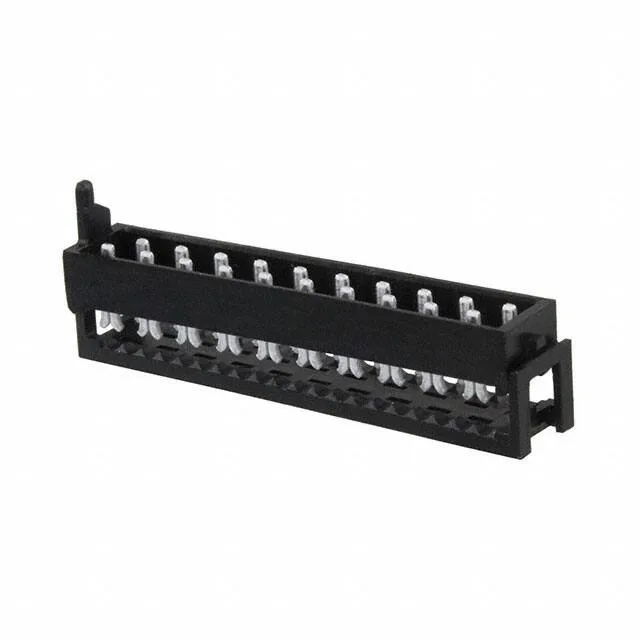

20-Position IDC Ribbon Cable Header — What It Is
The 2-2178712-0: It mates with the matching Micro-MaTch receptacle housing to form a wire-to-board interconnect for 0.050" pitch ribbon cable — the 0.100" (2.54mm) header pitch matches standard ribbon cable conductor spacing.
Obsolete — Sourcing the 2-2178712-0 Today
No direct replacement or successor part number has been assigned in the Micro-MaTch series.
Termination and Cable Fit
Termination is IDC — the ribbon cable is pressed into the dual-row slot, and the insulation displacement forks pierce each conductor simultaneously. The 0.059" (1.50mm) row spacing accommodates standard 0.050" pitch ribbon cable with 28-30 AWG conductors. The right-angle cable exit keeps the ribbon flat against the board, useful in tight enclosures where a straight vertical header would conflict with the lid or adjacent components. Tape and Reel packaging is available for automated cable assembly lines.
