TE Connectivity AMP Connectors 2-2178713-0 — Wire-to-Board Connectors

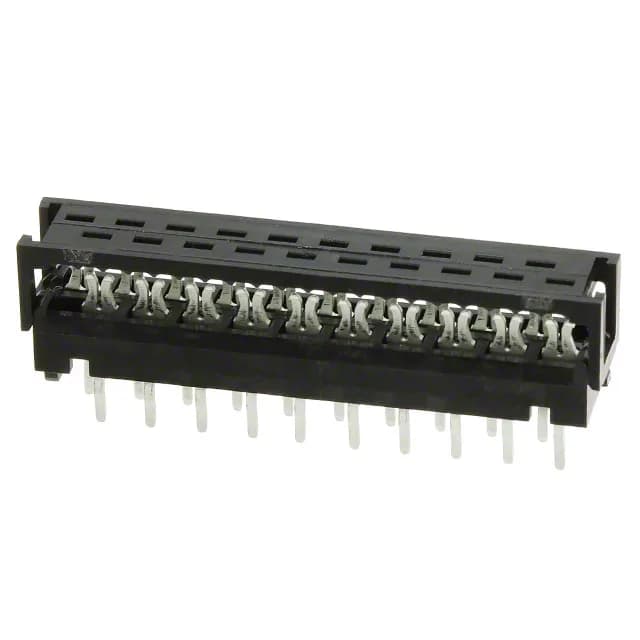

TE Connectivity 2-2178713-0 Micro-MaTch 20-Pin DIP Header

MPN2-2178713-0
Obsolete

TE Connectivity Micro-MaTch series, Ribbon Cable DIP Header, 20 positions, 2 rows, 0.100" (2.54mm) board-side pitch, 0.050" (1.27mm) cable pitch, IDC termination, Through Hole, Tin contact finish, Black housing.

$0.6800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-2178713-0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

2-2178713-0 specifications
ParameterValue
SeriesMicro-MaTch
MountingThrough Hole
Connector typeRibbon Cable, DIP Header
Cable pitch0.050\" (1.27mm)
Cable terminationIDC
ColorBlack
PackageTape & Reel (TR)
FeaturesBoard Guide
Row spacing0.100\" (2.54mm)
Contact finishTin
Rows2
Board-Side pitch0.100\" (2.54mm)
Positions20
Contact finish thickness118.1µin (3.00µm)

Product details

20-Position DIP Header for Ribbon Cable — Micro-MaTch Series

The TE Connectivity 2-2178713-0 is a 20-position, dual-row DIP header from the Micro-MaTch series, designed for mass-termination of 0.050" (1.27mm) pitch ribbon cable via IDC contacts.

Obsolete — Sourcing Through Surplus and Broker Channels

The 2-2178713-0 is officially obsolete per TE Connectivity's lifecycle status. No direct replacement or successor part number is listed on record.

The through-hole mounting provides robust mechanical retention for the ribbon cable entry point, where strain from the cable can otherwise stress surface-mount joints.

Frequently asked questions

Where can I buy 2-2178713-0 available via RFQ confirmation?

The 2-2178713-0 is obsolete and not held in standard distributor stock. It is sourced to order through independent distribution and surplus channels against an RFQ. Submit a request for current availability and pricing for your required quantity.

Is 2-2178713-0 obsolete?

Yes, the 2-2178713-0 is officially obsolete per TE Connectivity's lifecycle status. No direct replacement or successor part number is listed. For legacy BOM support, the part is available through surplus and broker channels on a quoted basis.
